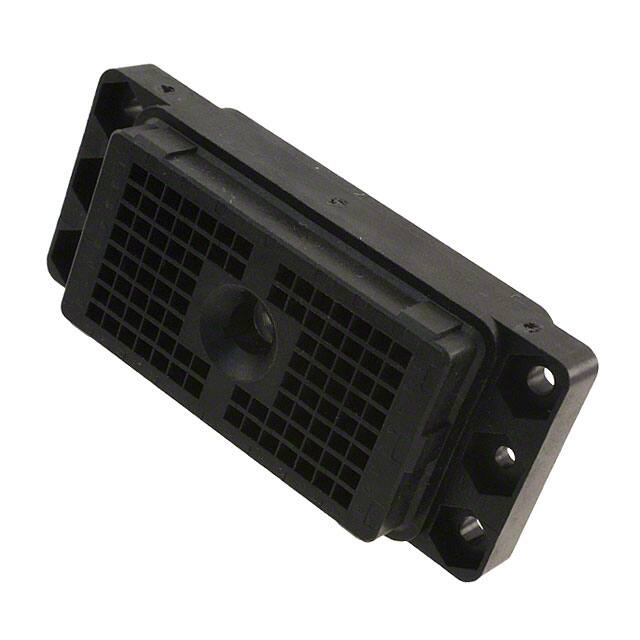

DL2-96R

Teknik Özellikler

Min. Çalışma Sıcaklığı

-55°C

Wire Sizemax

18 AWG

Operating Temperaturemin

-55 °C

Flammability Rating

UL94 V-1

Termination Method

Crimp

Product Height Mm

28.12(mm)

Durability

10000 Cycles

Operating Temperaturemax

105 °C

Ambalaj

Bulk

Maks. Çalışma Sıcaklığı

105°C

Bodyshell Style

RECEPTACLE

Reliability

COMMERCIAL

Contact Style

SQ PIN-SKT

Rohs Code

Yes

Additional Feature

COMPATIBLE CONTACTS:030-2494-001; 110238-0486, POLARIZATION AVAILABLE

Contact Resistance

15mOhm

REACH Uyumluluk Kodu

compliant

Body Breadth

1.108 inch

Yayın Yılı

2000

ECCN Kodu

EAR99

Product Length

65.8 mm

Özellikler

Actuating Camshaft Socket, Zero Insertion Force (ZIF)

Wire Size Min

42 AWG

Montaj Stili

Panel

Insulator Color

BLACK

Kurşunsuz

Lead Free

Risk Rank

1.73

Mil Conformance

NO

Terminal Stili

Crimp

Empty Shell

YES

Tip

Rectangular

HTS Kodu

8536.69.40.30

Mating Contact Pitch

0.1 inch

Rated Current Signal

5A

Parça Durumu

Active

Body Length

2.592 inch

Number Of Contact Rows

8

Üretici Parça No

DL2-96R

Akım Değeri

5A

Contact Gender

FEMALE
