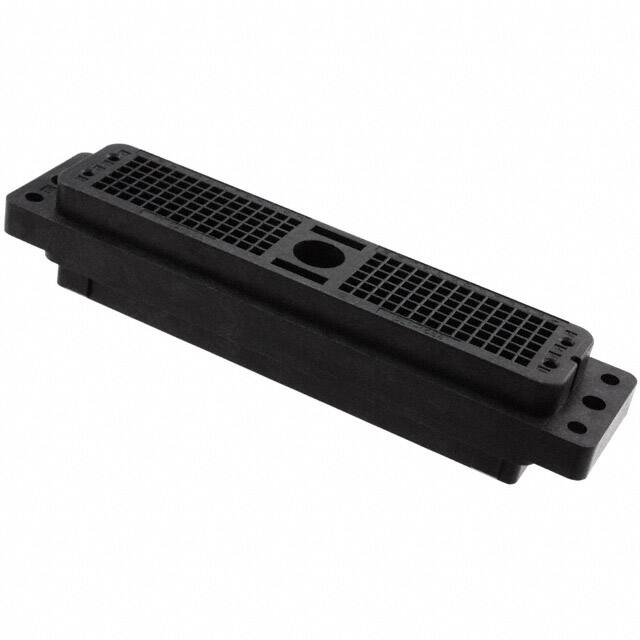

DL1-156R

Teknik Özellikler

Polarization Key

POLARIZED HOUSING

Dielectric Withstanding Voltage

1200VAC V

Number Of Contacts

156(POS)

Connector Type

Housing for Non-Gendered Contacts

Housing Material

Thermoplastic

Wire Gauge Max

42 AWG

Genişlik

24.9mm

Orientation

Straight

Pitch

0.100 2.54mm

Product Length Mm

108(mm)

Contact Materials

Copper

Insulation Resistance

5GOhm

Din Conformance

NO

Fabrika Tedarik Süresi

13 Weeks

Pozisyon Sayısı

156

Çalışma Sıcaklığı

-55 to 105 °C

Insulator Material

GLASS FILLED POLYETHYLENE

Reach Svhc

No SVHC

Total Number Of Contacts

156

Number Of Rows Loaded

6

Connector Usage

Receptacle

Pitch Mm

2.54(mm)

Shell Material

PLASTIC

Mixed Contacts

NO

Filter Feature

NO

Note

Contacts Not Included

Contact Plating

Gold

Nem Hassasiyeti (MSL)

Not Applicable

Mounting

Panel Mount

Plating Thickness

50μin

Wire Sizemin

42 AWG

Nominal Gerilim

1.2kV

Iec Conformance

NO

Mounting Option1

LOCKING

Body Orientation

Straight

Part Life Cycle Code

Active

Depth

20.32mm

Operating Temp Range

-55C to 105C

Gender

Receptacle

Seri

DL
