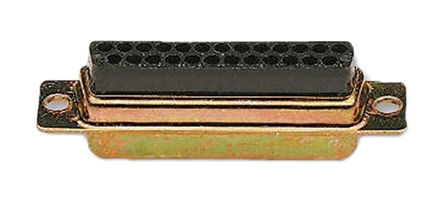

DEU-9S-A197-F0

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Wire Size Max

18 AWG

Reliability

COMMERCIAL

REACH Uyumluluk Kodu

compliant

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Nem Hassasiyeti (MSL)

Not Applicable

Pozisyon Sayısı

9

Renk

Black

Number Of Ports

1(Port)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Current Rating Max

5(A)

Fabrika Tedarik Süresi

12 Weeks

Din Conformance

NO

Operating Temperaturemin

-55 °C

Montaj Tipi

Free Hanging (In-Line)

Dielectric Material

Polyamide (PA), Nylon, Glass Filled

Sıra Sayısı

2

Akım Değeri

5(A)

Ihs Manufacturer

ITT CANNON

Shell Sizes

1/E

Note

Contacts Not Included

Iec Conformance

NO

Number Of Contacts

9(POS)

Mating Contact Pitch

0.109 inch

Mounting Option2

NON-THREADED

Termination Method

Crimp

RoHS Durumu

RoHS Compliant

Part Life Cycle Code

Active

Contact Materials

COPPER ALLOY

Risk Rank

1.65

Ambalaj

Bulk

Contact Pitch Mm

1.37(mm)

Mil Conformance

NO

Insulator Color

BLACK

Termination Type

CRIMP

Basehousing Material

Thermoplastic

Contact Gender

FEMALE

Montaj Stili

Cable

Tip

D-Subminiature

Yayın Yılı

2000
