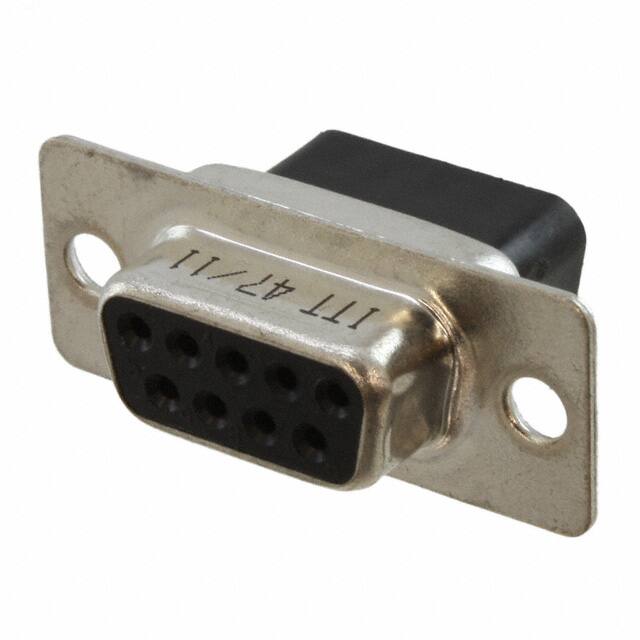

DEA-9S-A197-F0

Teknik Özellikler

Wire Sizemin

28 AWG

Body Orientation

Straight

Mating Contact Pitch

0.109 inch

Rad Hardened

No

Risk Rank

1.37

Operating Temperaturemin

-55 °C

Connector Style

D-Sub

Body Depth

0.43 inch

Yayın Yılı

2000

Contact Materials

COPPER ALLOY

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

Not Applicable

Additional Feature

EMI/RFI SHIELDED, COMPATIBLE CONTACTS: 980-2000-926; 980-2000-944; 980-2000-923; 980-2000-943; ZD110238-1010, PANEL MOUNTABLE

Contact Pattern

STAGGERED

Insulator Color

BLACK

Shell Finish

TIN

Ihs Manufacturer

ITT CANNON

Dielectric Withstanding Voltage

1000VAC V

HTS Kodu

8536.69.40.30

Gender

RCP

Ul Flammability Code

94V-0

Connector Type

Receptacle for Female Contacts

Mounting Option1

HOLE .112-.124

Option

GENERAL PURPOSE

Tip

D-Subminiature

Filter Feature

NO

Reference Standard

UL, CSA

Body Length

1.213 inch

Renk

Black

Wire Sizemax

20 AWG

Contact Design

STRIP OR LOOSE

Rohs Code

Yes

Mounting Option2

NON-THREADED

Üretici Parça No

DEA-9S-A197-F0

Contact Resistance

15mOhm

Body Breadth

0.494 inch

Din Conformance

NO

Operating Temp Range

-55C to 105C

Ambalaj

Bulk

Note

Contacts Not Included
