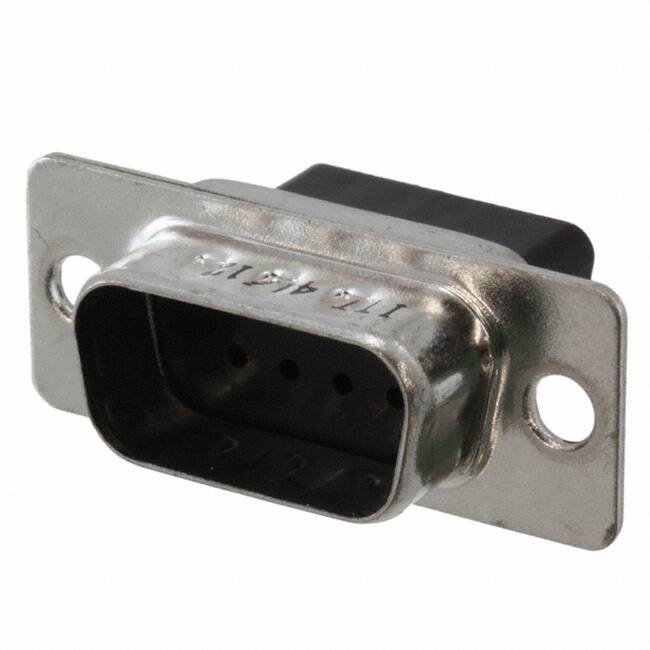

DEA-9P-K87-F0

Teknik Özellikler

Gender

PL

Number Of Contact Rows

2

Dielectric Withstanding Voltage

1000VAC V

HTS Kodu

8536.69.40.30

Insulator Color

BLACK

Shell Finish

TIN

Ihs Manufacturer

ITT CANNON

Contact Pattern

STAGGERED

Reference Standard

UL, CSA

Filter Feature

NO

Mounting Option1

HOLE .112-.124

Connector Type

Plug for Male Contacts

Tip

D-Subminiature

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Risk Rank

1.92

Operating Temperaturemin

-55 °C

Mating Contact Pitch

0.109 inch

Rad Hardened

No

Package Description

ROHS COMPLIANT

Wire Sizemin

28 AWG

Body Orientation

Straight

Additional Feature

EMI/RFI SHIELDED, COMPATIBLE CONTACTS: 980-2000-925; 980-2000-946; 980-2000-924; 980-2000-945; ZD110238-1009, PANEL MOUNTABLE

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

Not Applicable

Body Depth

0.43 inch

Yayın Yılı

2007

Contact Materials

COPPER ALLOY

Connector Style

D-Sub

Contact Resistance

15mOhm

JESD-609 Kodu

e4

Body Breadth

0.494 inch

Note

Contacts Not Included

Çalışma Sıcaklığı

-55°C~105°C

Ambalaj

Bulk

Din Conformance

NO

Operating Temp Range

-55C to 105C

Wire Sizemax

20 AWG

Renk

Black

Özellikler

Grounding Indents
