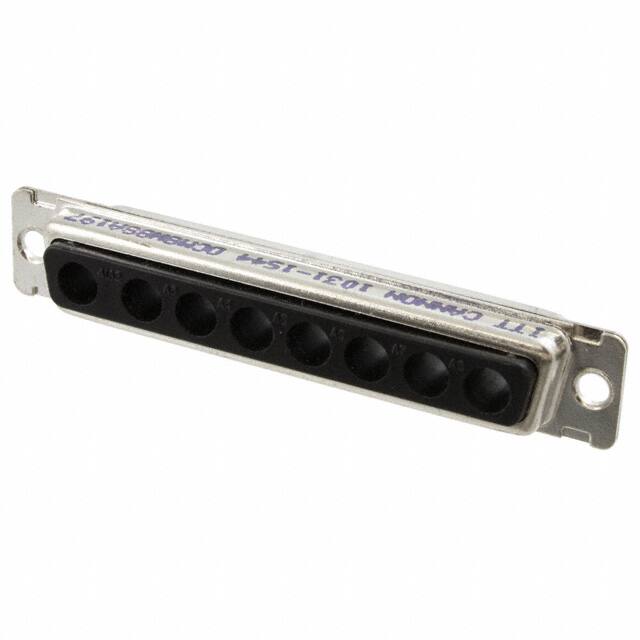

DCM-8W8S-A197

Teknik Özellikler

Montaj Tipi

Panel Mount

Body Length Or Diameter

2.729 inch

Connector Type

Receptacle for Female Contacts

Reliability

COMMERCIAL

Contact Finish Mating

GOLD (30)

Parça Durumu

Active

Iec Conformance

NO

Insulation Materials

POLYESTER

Connector Style

D-Sub, Combo

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~125°C

Flange Feature

Housing/Shell (Unthreaded)

Seri

Combo D®, D*M

Shell Material Finish

Steel, Tin Plated

Özellikler

Shielded

Din Conformance

NO

Filter Feature

NO

Body Depth

0.39 inch

Termination Type

SOLDER

Ul Flammability Code

94V-0

Rated Current Signal

5A

Contact Resistance

55mOhm

Number Of Conductors

ONE

Dielectric Material

Polycyclohexylenedimethylene Terephthalate (PCT)

Contact Materials

COPPER ALLOY

Sıra Sayısı

1

Shell Finish

TIN

Fabrika Tedarik Süresi

17 Weeks

Contact Type

Coax or Power

Total Number Of Contacts

8

Body Breadth

0.494 inch

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

Not Applicable

Pozisyon Sayısı

8 (Coax or Power)

Contact Arrangement

S0C8

Ambalaj

Bulk

Mixed Contacts

NO

Yayın Yılı

2000

Note

Contacts Not Included

Shell Size Connector Layout

4 DC C - 8W8
