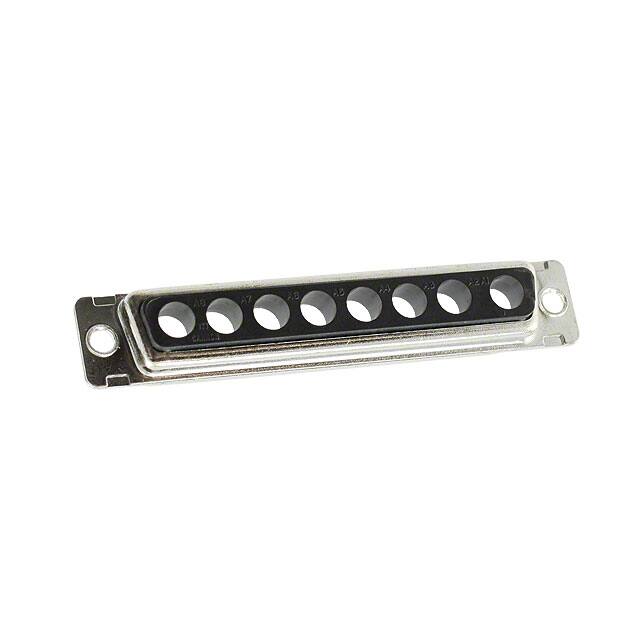

DCM-8W8P-K87

Teknik Özellikler

Shell Finish

TIN

Additional Feature

EMI/RFI SHIELDED

Sıra Sayısı

1

Contact Materials

COPPER ALLOY

Dielectric Material

Polycyclohexylenedimethylene Terephthalate (PCT)

Body Breadth

0.494 inch

Option

GENERAL PURPOSE

Total Number Of Contacts

8

Fabrika Tedarik Süresi

17 Weeks

Contact Type

Coax or Power

Note

Contacts Not Included

Shell Size Connector Layout

4 DC C - 8W8

Contact Arrangement

S0C8

Ambalaj

Bulk

Mixed Contacts

NO

Yayın Yılı

2011

Nem Hassasiyeti (MSL)

Not Applicable

Pozisyon Sayısı

8 (Coax or Power)

Renk

Black

Mil Conformance

NO

Reference Standard

UL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Empty Shell

NO

Reliability

COMMERCIAL

Body Length Or Diameter

2.729 inch

Connector Type

Plug for Male Contacts

Montaj Tipi

Panel Mount

Connector Style

D-Sub, Combo

RoHS Durumu

RoHS Compliant

Insulation Materials

POLYESTER

Iec Conformance

NO

Parça Durumu

Active

Contact Finish Mating

NOT SPECIFIED

Shell Material Finish

Steel, Tin Plated

Özellikler

Grounding Indents, Shielded

Seri

Combo D®, D*M

Contact Finish Termination

Gold Flash (Au)

Flange Feature

Housing/Shell (Unthreaded)

Çalışma Sıcaklığı

-55°C~125°C

Rated Current Signal

5A
