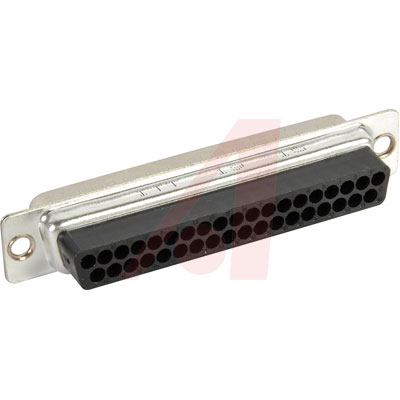

DCA-37P-K87-F0

Teknik Özellikler

Seri

D*A

Din Conformance

NO

Contact Gender

MALE

Connector Type

Plug for Male Contacts

Shell Finish

TIN

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Option

GENERAL PURPOSE

Dielectric Withstanding Voltage

1000VAC V

Operating Temperaturemin

-55 °C

Contact Style

RND PIN-SKT

Sıra Sayısı

2

Contact Finish Mating

NOT SPECIFIED

Parça Durumu

Active

Additional Feature

COMPATIBLE CONTACTS: 030-2487-017; 030-2487-016; 980-2000-925; 980-2000-946; 980-2000-924

Iec Conformance

NO

Body Depth

0.43 inch

Part Life Cycle Code

Active

Flange Feature

Housing/Shell (Unthreaded)

Number Of Rows Loaded

2

Package Description

ROHS COMPLIANT

Shell Sizes

4/C

Shell Material

STEEL

Risk Rank

1.25

Contact Resistance

15 mΩ

Body Length

2.728 inch

Rad Hardened

No

Housing Color

Black

JESD-609 Kodu

e4

Insulator Color

BLACK

Contact Pattern

STAGGERED

Dielectric Material

Thermoplastic

Yayın Yılı

2000

Reliability

COMMERCIAL

Wire Gauge

20-28(AWG)

Rohs Code

Yes

Note

Contacts Not Included

Ihs Manufacturer

ITT CANNON

Mating Contact Row Spacing

0.112 inch

Mil Conformance

NO

Pozisyon Sayısı

37
