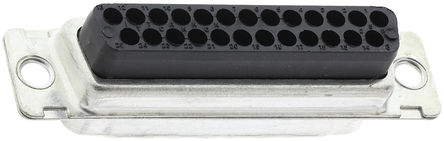

DBU-25P-K87-F0

Teknik Özellikler

Contact Resistance

15mOhm

Contact Type

Signal

Sıra Sayısı

2

JESD-609 Kodu

e4

Empty Shell

YES

Özellikler

Grounding Indents

Contact Finish Mating

GOLD OVER NICKEL

Contact Materials

COPPER ALLOY

Dielectric Withstanding Voltage

1000VAC V

Din Conformance

NO

Nem Hassasiyeti (MSL)

Not Applicable

Connector Style

D-Sub

Reliability

COMMERCIAL

Contact Design

MACH OR STAMPED

Body Depth

0.375 inch

Seri

D*U

Mating Contact Pitch

0.109 inch

Mixed Contacts

NO

Option

GENERAL PURPOSE

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Termination Type

CRIMP

Note

Contacts Not Included

Shell Finish

TIN

Mil Conformance

NO

Iec Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Total Number Of Contacts

25

Wire Size Max

18 AWG

Connector Type

Plug for Male Contacts

Ul Flammability Code

94V-0

Dielectric Material

Polyamide (PA), Nylon, Glass Filled

RoHS Durumu

RoHS Compliant

Rated Current Signal

5A

Renk

Black

Insulation Materials

GLASS FILLED POLYETHYLENE

Ambalaj

Bulk

Yayın Yılı

2000

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Reference Standard

UL, CSA
