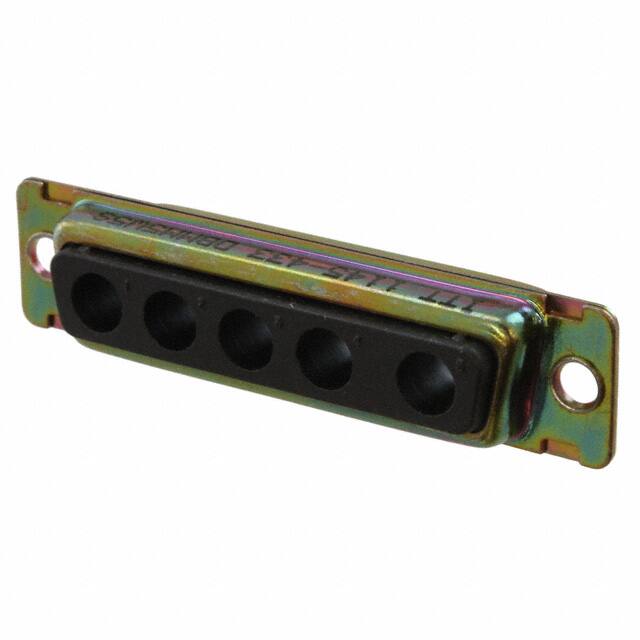

DBMM-5W5S

Teknik Özellikler

Shell Finish

CADMIUM

Mixed Contacts

NO

Connector Type

Receptacle for Female Contacts

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Ul Flammability Code

94V-0

Contact Design

PREASSEM CONN

Body Length Or Diameter

2.088 inch

Shell Size Connector Layout

3 DB B - 5W5

RoHS Durumu

Non-RoHS Compliant

Insulation Materials

POLYETHYLENE

Ambalaj

Bulk

Mil Conformance

NO

Seri

24308-Style, Combo D®, D*MM

Note

Contacts Not Included

Özellikler

Shielded

Connector Style

D-Sub, Combo

Montaj Tipi

Free Hanging (In-Line)

Termination Type

SOLDER

Reliability

COMMERCIAL

Din Conformance

NO

Yayın Yılı

2013

Option

GENERAL PURPOSE

Wire Size Min

20 AWG

Contact Arrangement

S0C5

Wire Size Max

20 AWG

Body Breadth

0.494 inch

Filter Feature

NO

Total Number Of Contacts

5

Contact Type

Coax or Power

Kurşunsuz Kodu

no

Çalışma Sıcaklığı

-55°C~150°C

HTS Kodu

8536.69.40.30

Flange Feature

Housing/Shell (Unthreaded)

Renk

Black

Iec Conformance

NO

Empty Shell

YES

Contact Materials

NOT SPECIFIED

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active

Fabrika Tedarik Süresi

21 Weeks
