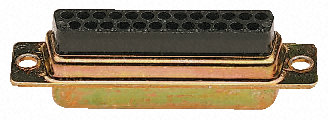

DAU-15S-A197-F0

Teknik Özellikler

Contact Materials

COPPER ALLOY

Contact Design

MACH OR STAMPED

Montaj

Cable, Free Hanging

Reference Standard

UL, CSA

Note

Contacts Not Included

Ul Flammability Code

94V-0

Mating Contact Pitch

0.109 inch

Filter Feature

NO

Dielectric Material

Polyamide (PA), Nylon, Glass Filled

Shell Size Connector Layout

2 DA A

Mil Conformance

NO

Body Depth

0.375 inch

Wire Gauge Max

30 AWG

Shell Material Finish

Steel, Tin-Nickel Plated

Akım Değeri

5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Renk

Black

Max Current Rating

5A

Rated Current Signal

5A

JESD-609 Kodu

e4

Iec Conformance

NO

Yayın Yılı

2000

Seri

D*U

Body Material

Steel

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Din Conformance

NO

Total Number Of Contacts

15

Connector Type

Receptacle for Female Contacts

Contact Finish Mating

GOLD OVER NICKEL

Fabrika Tedarik Süresi

12 Weeks

Housing Material

Thermoplastic

Pozisyon Sayısı

15

Flange Feature

Housing/Shell (Unthreaded)

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~125°C

Ambalaj

Bulk

Shell Finish

TIN

Termination Type

CRIMP

Bodyshell Style

SOCKET
