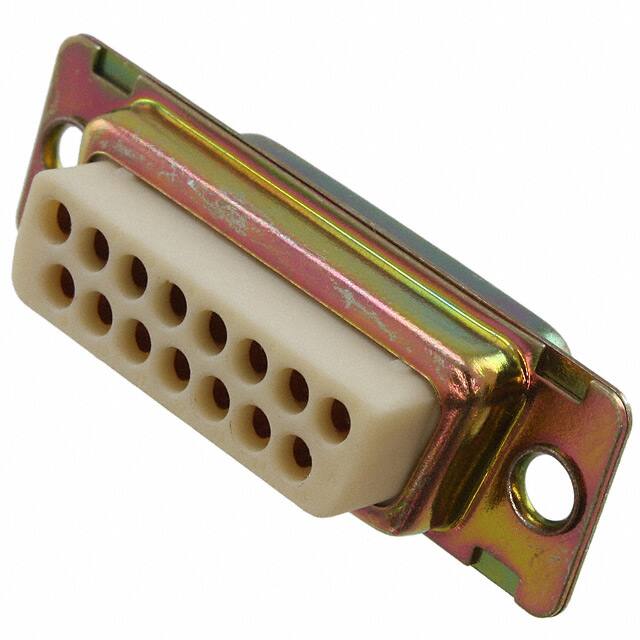

DAMA-15S-F0

Teknik Özellikler

Connector Style

D-Sub, High Density

RoHS Durumu

Non-RoHS Compliant

Insulation Materials

GLASS FILLED DIALLYL PHTHALATE

Iec Conformance

NO

Parça Durumu

Active

Contact Finish Mating

GOLD OVER NICKEL

Mating Cycles

200

Connector Type

Receptacle for Female Contacts

Montaj Tipi

Free Hanging (In-Line)

Filter Feature

NO

Din Conformance

NO

Shell Material Finish

Steel, Yellow Chromate Plated Zinc

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Seri

D*MA

Flange Feature

Housing/Shell (Unthreaded)

Çalışma Sıcaklığı

-55°C~125°C

Total Number Of Contacts

15

Contact Type

Signal

Fabrika Tedarik Süresi

21 Weeks

Sıra Sayısı

3

Contact Materials

COPPER ALLOY

Dielectric Material

Thermoplastic

Mil Conformance

NO

Empty Shell

YES

Shell Size Connector Layout

1 DE E High Density

Note

Contacts Not Included

JESD-609 Kodu

e4

Yayın Yılı

2011

Mixed Contacts

NO

Ambalaj

Bulk

Kurşunsuz Kodu

no

Pozisyon Sayısı

15

Nem Hassasiyeti (MSL)

Not Applicable
