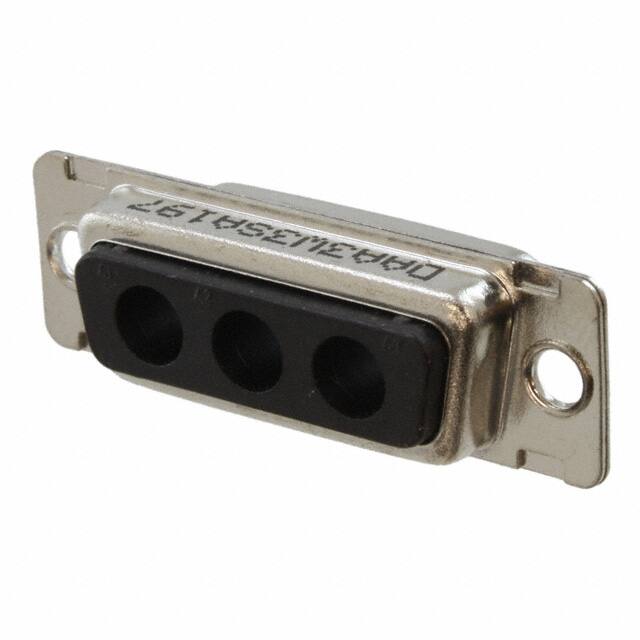

DAA-3W3S-A197-F0

Teknik Özellikler

HTS Kodu

8536.69.40.30

Insulation Materials

POLYESTER

Mil Conformance

NO

Ul Flammability Code

94V-0

Connector Style

D-Sub, Combo

Sıra Sayısı

1

Contact Materials

COPPER ALLOY

ECCN Kodu

EAR99

Shell Size Connector Layout

2 DA A - 3W3

Kurşunsuz Kodu

yes

Total Number Of Contacts

3

Pozisyon Sayısı

3 (Coax or Power)

Contact Type

Coax or Power

Filter Feature

NO

Renk

Black

Mixed Contacts

NO

Seri

Combo D®, D*A

Dielectric Material

Polycyclohexylenedimethylene Terephthalate (PCT)

Parça Durumu

Active

Nem Hassasiyeti (MSL)

Not Applicable

Din Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Ambalaj

Bulk

Connector Type

Receptacle for Female Contacts

Empty Shell

YES

Montaj Tipi

Panel Mount

Shell Material Finish

Steel, Tin Plated

Flange Feature

Housing/Shell (Unthreaded)

Shell Finish

TIN

Yayın Yılı

2011

Contact Finish Mating

GOLD OVER NICKEL

Mating Information

DAA3W3PK87F0

Iec Conformance

NO

Option

GENERAL PURPOSE

Note

Contacts Not Included

Çalışma Sıcaklığı

-55°C~105°C

Termination Type

CRIMP

RoHS Durumu

RoHS Compliant
