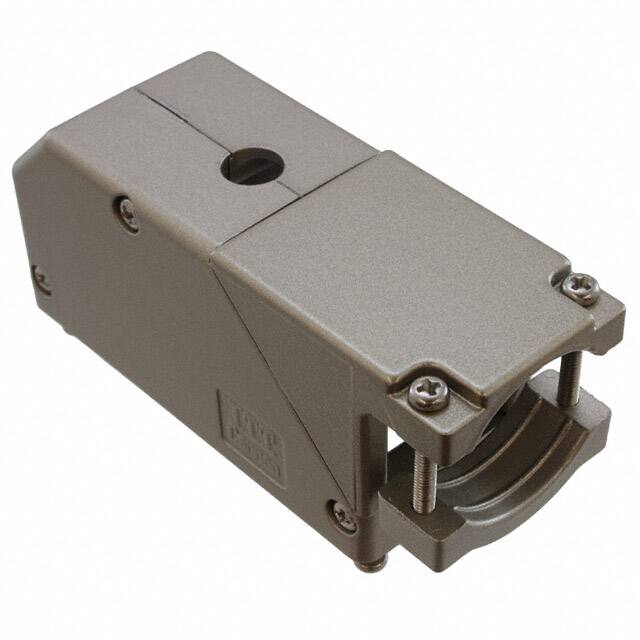

249-4517-000

Teknik Özellikler

Ambalaj

Bulk

Small Diameter Recovered

0.142 (3.61mm)

Large Diameter Supplied

1.060 (26.92mm)

Depth

28.1mm

Kılıf / Paket

Metal

Large Diameter Recovered

0.500 (12.70mm)

Body Material

Aluminium

Product Length

77.8 mm

REACH Uyumluluk Kodu

compliant

Iec Conformance

NO

Mounting Option1

SCREW

Connector Support Type

CONNECTOR ACCESSORY

Small Recovered Length

1.409 (35.79mm)

Mil Conformance

NO

Total Length Recovered

3.642 (92.51mm)

Shell Size Insert

24

Risk Rank

1.48

Seri

DL

Fabrika Tedarik Süresi

22 Weeks

Renk

Grey

Accessory Type

Backshell

Large Recovered Length

1.618 (41.10mm)

Manufacturer Series

249-45

Tip

Boot, Transition - Side Breakout, 45°

Part Life Cycle Code

Active

Specifications

Metal, DL2, DLM2

Small Diameter Supplied

0.260 (6.60mm)

Assembly Item Name

BACKSHELL

Ihs Manufacturer

ITT CANNON

Material

Polyolefin (PO), Semi-Flexible

Uzunluk

77.8mm

Orientation

Straight

Nem Hassasiyeti (MSL)

Not Applicable

Mounting Option2

SCREW

Parça Durumu

Active

Din Conformance

NO

Cable Entrymax

0.75 inch

Radyasyon Dayanımı

No

Yayın Yılı

1998

Reach Svhc

No SVHC
