192993-0083

Teknik Özellikler

Assembly Item Name

SEALING ITEM

Min. Çalışma Sıcaklığı

-55°C

Yayın Yılı

2009

Product Diameter Mm

24(mm)

Cable Exit

180°

Cable Opening

0.449 (11.40mm)

Parça Durumu

Active

Includes

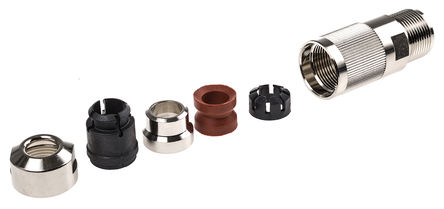

7 pcs - 1 Backshell, 1 Clamp Nut, 1 Clamp Ring, 1 Grounding Ring, 1 O-Ring, 1 Seal, 1 Sleeve

Orientation

Straight

RoHS Durumu

RoHS Compliant

Risk Rank

1.64

Kurşunsuz

Lead Free

Body Orientation

Straight

Cable Entrymax

0.402 inch

Renk

Silver

Fabrika Tedarik Süresi

12 Weeks

Part Life Cycle Code

Active

Din Conformance

NO

Operating Temp Range

-55C to 105C

Ambalaj

SINGLE

Gender

Male

Product Length Mm

88.5(mm)

Shielding

Shielded

Mounting

Through Hole

Connector Type

Circular

Radyasyon Dayanımı

No

Ingress Protection

IP67 - Dust Tight, Waterproof

Seri

Trident Neptune Metal (TNM)

Maks. Çalışma Sıcaklığı

105°C

Uzunluk

88.5mm

Material

Aluminum

Rohs Code

Yes

Ratings

Dust Tight, IP67, Waterproof

Plating

Nickel

Ihs Manufacturer

ITT CANNON

Özellikler

Sealing Gland

Product Length

88.5 mm

Tip

Backshell, Cable Clamp

Reach Svhc

No SVHC

Body Material

Aluminium
