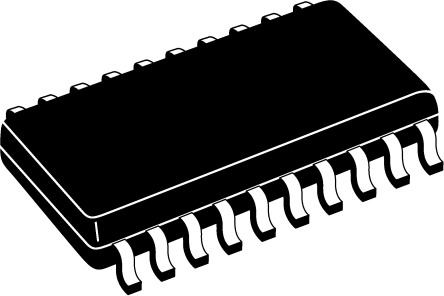

IDT74FCT3807PYGI

Teknik Özellikler

Frequencymax

100MHz

Terminal Sayısı

20

Ihs Manufacturer

INTEGRATED DEVICE TECHNOLOGY INC

Pin Sayısı

20

Number Of Terminals

20

Supply Voltagemin Vsup

3 V

Package Body Material

PLASTIC/EPOXY

Operating Temperaturemin

-40 °C

Min. Çalışma Sıcaklığı

-40°C

HTS Kodu

8542.39.00.01

Terminal Pozisyonu

DUAL

Samacsys Description

IDT74FCT3807PYGI, Clock Buffer CMOS, TTL, 20-Pin SSOP

Üretici Parça No

IDT74FCT3807PYGI

Seated Heightmax

1.99 mm

Family

FCT

Supply Voltagenom Vsup

3.3 V

Supply Voltagemax Vsup

3.6 V

Package Description

SSOP, SSOP20,.3

Max Supply Voltage

3.6V

JESD-609 Kodu

e3

Technology

CMOS

Temperature Grade

INDUSTRIAL

Genişlik

5.3mm

Power Supplies

3.3 V

Kurşunsuz Kodu

yes

Number Of True Outputs

10

Tepe Reflow Süresi (maks. sn)

30

Uzunluk

7.2mm

Output Characteristics

3-STATE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

n/a

Package Code

SSOP

REACH Uyumluluk Kodu

compliant

Logic Function

Clock

Package Style

SMALL OUTLINE, SHRINK PITCH

Input

LVTTL

Kılıf / Paket

SSOP

Same Edge Skewmax Tskwd

0.6 ns

Max Iol

0.024 A

RoHS Durumu

RoHS Compliant
