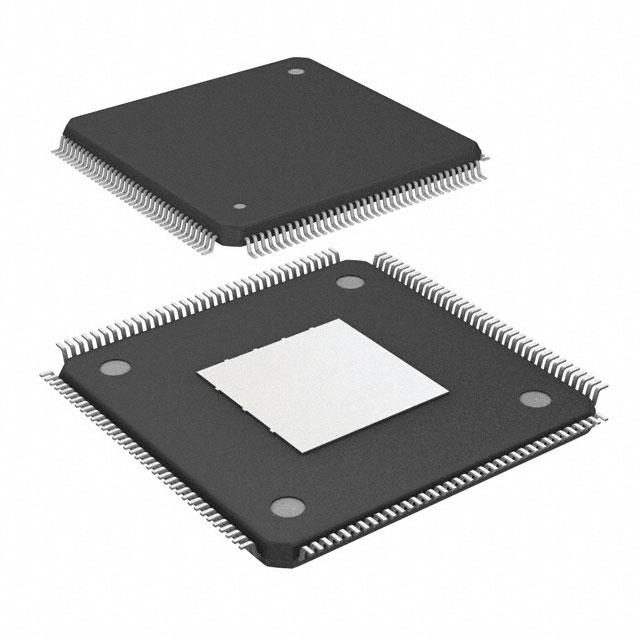

XMC4500F144F1024ACXQMA1

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Operating Supply Voltage

1.3V

Program Memory Type

FLASH

Kılıf / Paket

144-LQFP Exposed Pad

Number Of Adc Channels

32

Max Power Dissipation

1W

Memory Size

1MB

Number Of Ios

91

Oscillator Type

Internal

Radyasyon Dayanımı

No

Yayın Yılı

2014

Interface

CAN, EBI/EMI, Ethernet, I2C, I2S, LIN, SPI, UART, USB

Seri

XMC4000

JESD-609 Kodu

e3

Watchdog Timers

Yes

Montaj Tipi

Surface Mount

Halogen Free

Halogen Free

Data Bus Width

32b

Peripherals

DMA, I2S, LED, POR, PWM, WDT

Connectivity

CANbus, EBI/EMI, Ethernet, I2C, LINbus, SPI, UART, USB

Ambalaj

Tray

Data Converters

A/D 32x12b; D/A 2x12b

Nem Hassasiyeti (MSL)

3 (168 Hours)

Ram Size

160K x 8

Voltage Supply Vccvdd

3.13V~3.63V

Core Architecture

ARM

Kurşunsuz

Lead Free

Frekans

120MHz

Core Size

32-Bit

Fabrika Tedarik Süresi

13 Weeks

Weight

1.290414g

Number Of Programmable Io

117

Core Processor

ARM® Cortex®-M4

Number Of Timerscounters

4

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~85°C TA

Pin Sayısı

144

Program Memory Size

1MB 1M x 8

Terminal Kaplaması

Tin (Sn)
