XMC4500F100F1024ACXQMA1

Teknik Özellikler

Terminal Kaplaması

Tin (Sn)

Pin Sayısı

100

Program Memory Size

1MB 1M x 8

Number Of Timerscounters

4

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~85°C TA

Weight

1.319103g

Number Of Programmable Io

73

Core Processor

ARM® Cortex®-M4

Fabrika Tedarik Süresi

13 Weeks

Core Size

32-Bit

Frekans

120MHz

Kurşunsuz

Lead Free

Core Architecture

ARM

Voltage Supply Vccvdd

3.13V~3.63V

Ram Size

160K x 8

Nem Hassasiyeti (MSL)

3 (168 Hours)

Data Converters

A/D 24x12b; D/A 2x12b

Ambalaj

Tray

Connectivity

CANbus, EBI/EMI, Ethernet, I2C, LINbus, SPI, UART, USB

Data Bus Width

32b

Peripherals

DMA, I2S, LED, POR, PWM, WDT

Halogen Free

Halogen Free

Montaj Tipi

Surface Mount

Watchdog Timers

Yes

JESD-609 Kodu

e3

Interface

CAN, EBI/EMI, Ethernet, I2C, I2S, LIN, SPI, UART, USB

Seri

XMC4000

Yayın Yılı

2014

Radyasyon Dayanımı

No

Oscillator Type

Internal

Number Of Ios

55

Memory Size

1MB

Max Power Dissipation

1W

RoHS Durumu

ROHS3 Compliant

Operating Supply Voltage

1.3V

Program Memory Type

FLASH

Kılıf / Paket

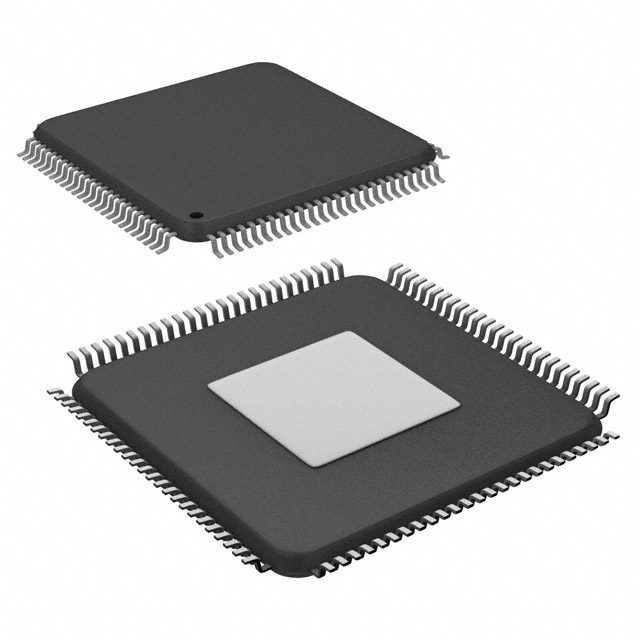

100-LQFP Exposed Pad

Number Of Adc Channels

32
