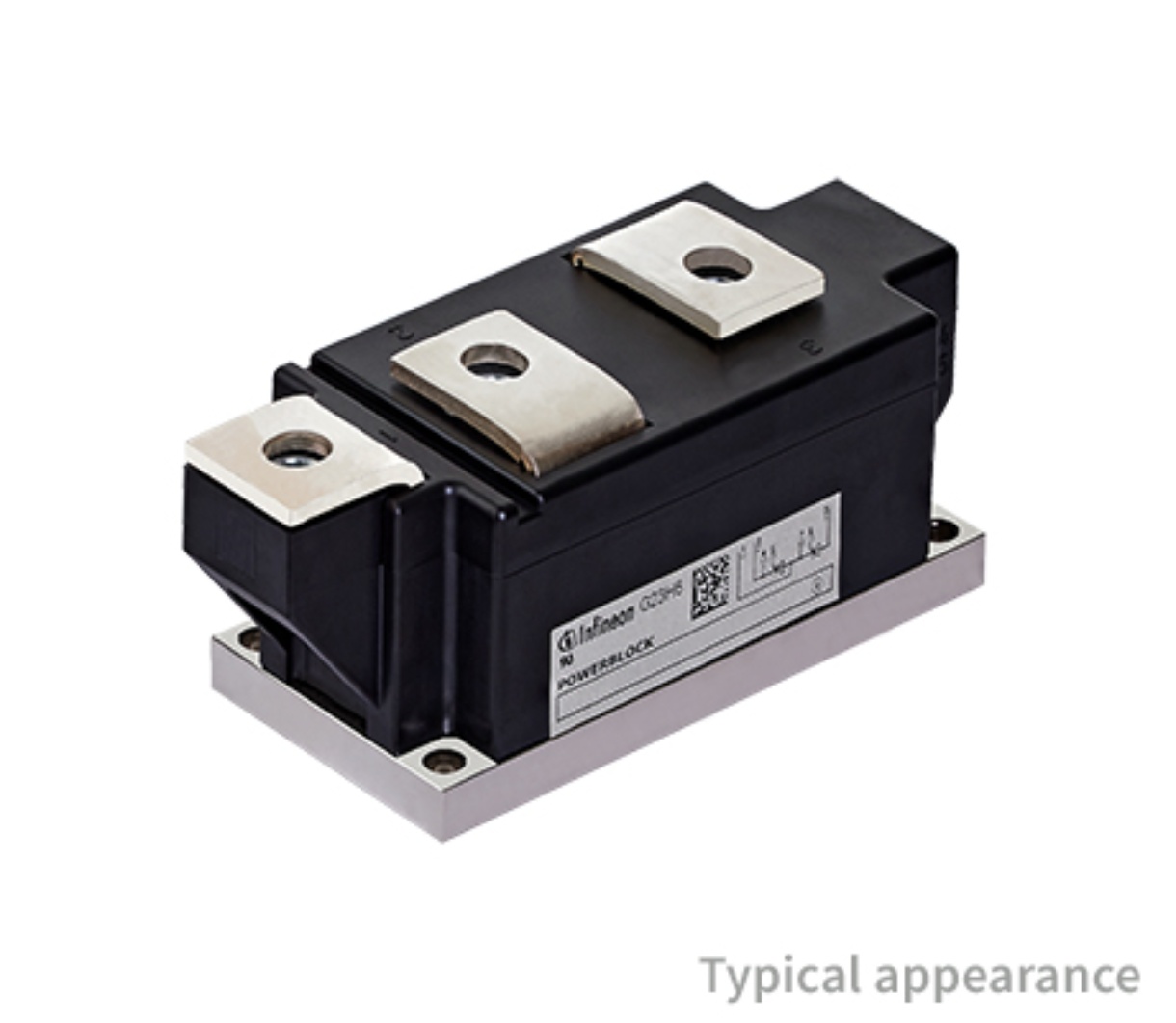

TT500N14KOFHPSA2

Teknik Özellikler

Structure

Series Connection - All SCRs

Montaj

Screw

Yayın Yılı

2012

Çalışma Sıcaklığı

-40°C~125°C

Repetitive Peak Offstate Voltage

1400V

Jesd30 Code

R-XXFM-X7

RoHS Durumu

RoHS Compliant

Trigger Device Type

SCR

Terminal Pozisyonu

UNSPECIFIED

Halogen Free

Not Halogen Free

Output Current

900A

Hold Current

300mA

Number Of Elements

2

Case Connection

ISOLATED

Nem Hassasiyeti (MSL)

Not Applicable

Max Forward Surge Current Ifsm

14.5kA

Radyasyon Dayanımı

No

Current On State It Rms Max

900A

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Current On State It Av Max

500A

Current Non Rep Surge5060hz Itsm

17000A @ 50Hz

Fabrika Tedarik Süresi

8 Weeks

Terminal Sayısı

7

Terminal Formu

UNSPECIFIED

Current Gate Trigger Igt Max

250mA

Ambalaj

Bulk

Number Of Scrsdiodes

2 SCRs

Reverse Voltage

1.4kV

Kılıf / Paket

Module

Parça Durumu

Active

Max Repetitive Reverse Voltage Vrrm

1.4kV

Montaj Tipi

Chassis Mount

Kurşunsuz

Lead Free

Voltage Gate Trigger Vgt Max

2.2V
