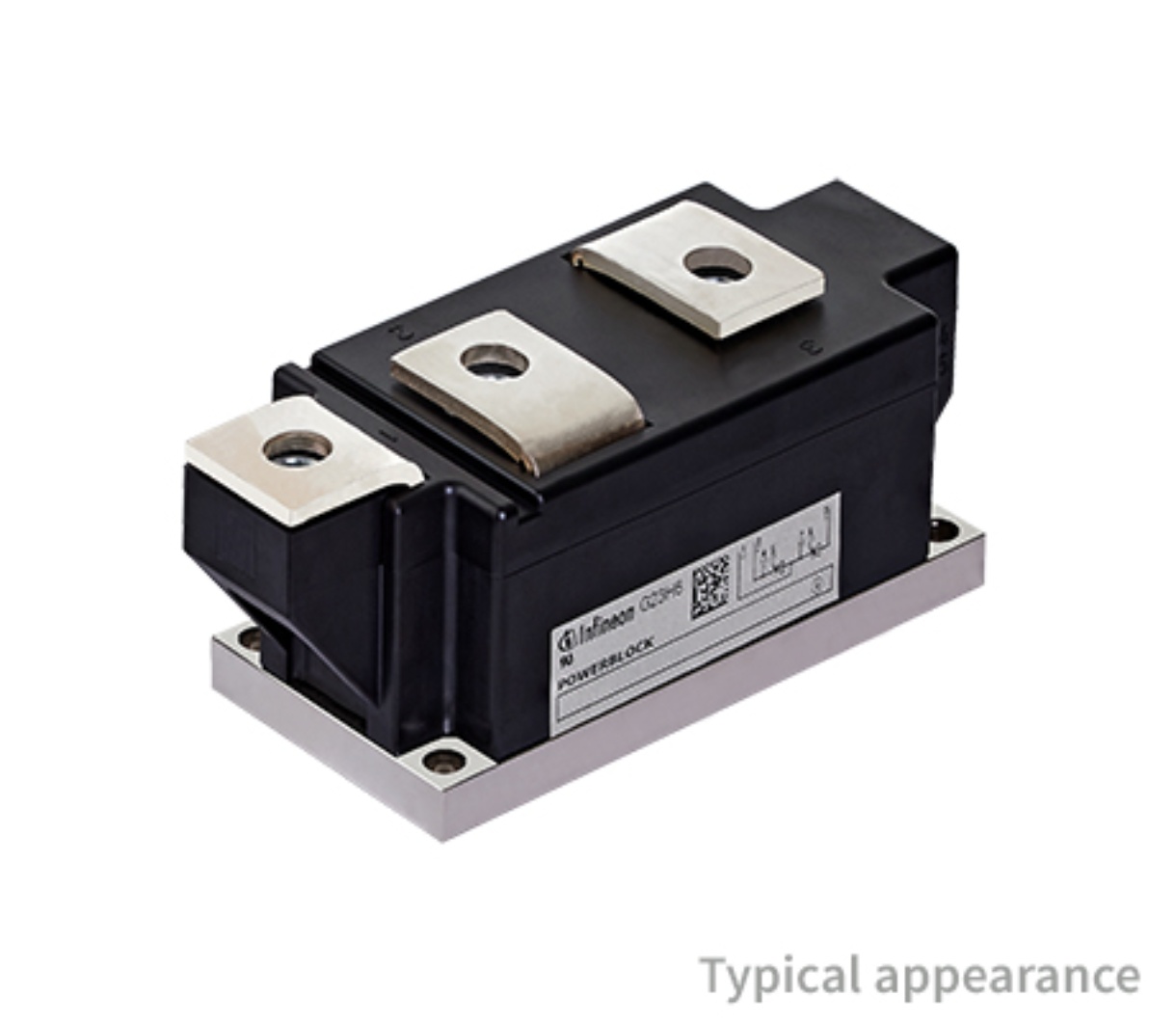

TT310N24KOFHPSA1

Teknik Özellikler

Ambalaj

Bulk

Number Of Scrsdiodes

2 SCRs

Kılıf / Paket

Module

Montaj Tipi

Chassis Mount

Current Hold Ih Max

300mA

Parça Durumu

Obsolete

REACH Uyumluluk Kodu

compliant

Repetitive Peak Reverse Voltage

2400V

Additional Feature

UL RECOGNIZED

Voltage Gate Trigger Vgt Max

1.5V

Voltageoff State

2.4kV

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Current On State It Av Max

446A

Current On State It Rms Max

700A

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Terminal Formu

UNSPECIFIED

Terminal Sayısı

7

HTS Kodu

8541.30.00.80

Reference Standard

IEC-747-6

Current Non Rep Surge5060hz Itsm

10000A @ 50Hz

Current Gate Trigger Igt Max

250mA

Yüzey Montaj

NO

Case Connection

ISOLATED

Number Of Elements

2

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2003

Çalışma Sıcaklığı

-40°C~125°C

Structure

Series Connection - All SCRs

Repetitive Peak Offstate Voltage

2400V

Trigger Device Type

SCR

RoHS Durumu

RoHS Compliant

Jesd30 Code

R-XUFM-X7

ECCN Kodu

EAR99

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Pozisyonu

UPPER
