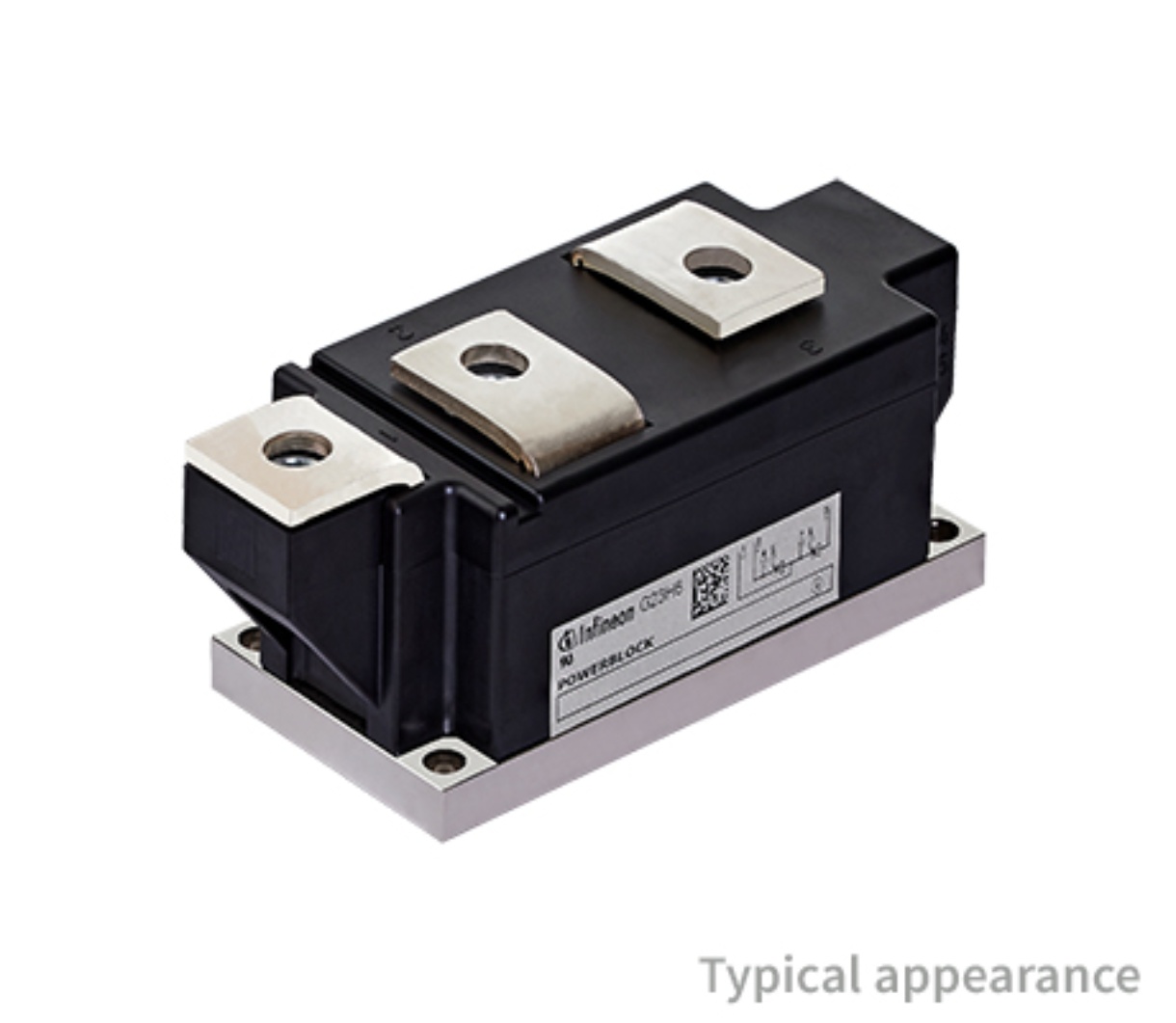

TT310N22KOFHPSA1

Teknik Özellikler

Nem Hassasiyeti (MSL)

Not Applicable

Case Connection

ISOLATED

Number Of Elements

2

ECCN Kodu

EAR99

Terminal Pozisyonu

UPPER

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Trigger Device Type

SCR

RoHS Durumu

RoHS Compliant

Jesd30 Code

R-XUFM-X7

Repetitive Peak Offstate Voltage

2200V

Structure

Series Connection - All SCRs

Çalışma Sıcaklığı

-40°C~125°C

Yayın Yılı

2003

Voltage Gate Trigger Vgt Max

1.5V

Additional Feature

UL RECOGNIZED

Repetitive Peak Reverse Voltage

2200V

Current Hold Ih Max

300mA

REACH Uyumluluk Kodu

compliant

Parça Durumu

Obsolete

Montaj Tipi

Chassis Mount

Kılıf / Paket

Module

Number Of Scrsdiodes

2 SCRs

Ambalaj

Bulk

Current Gate Trigger Igt Max

250mA

Yüzey Montaj

NO

HTS Kodu

8541.30.00.80

Terminal Sayısı

7

Current Non Rep Surge5060hz Itsm

10000A @ 50Hz

Reference Standard

IEC-747-6

Terminal Formu

UNSPECIFIED

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Current On State It Rms Max

700A

Current On State It Av Max

446A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Voltageoff State

2.2kV
