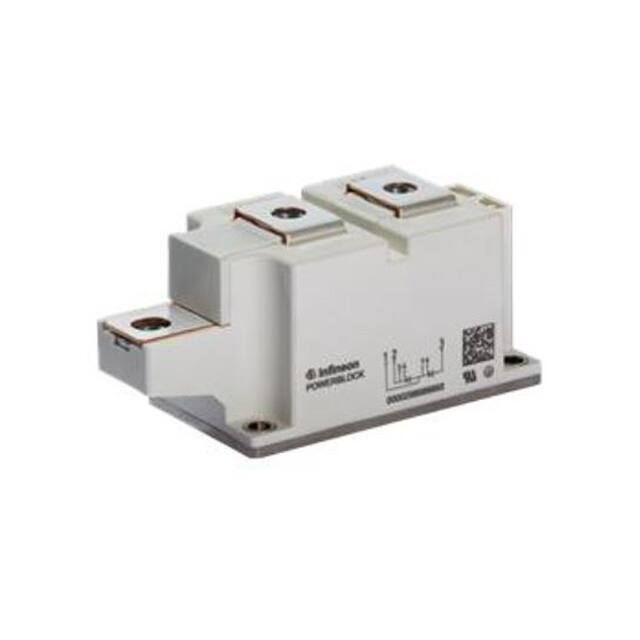

TT280N16SOFHPSA1

Teknik Özellikler

Current On State It Rms Max

520A

Voltage Gate Trigger Vgt Max

2V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Halogen Free

Not Halogen Free

Max Forward Surge Current Ifsm

9kA

Additional Feature

UL RECOGNIZED

Yayın Yılı

2012

Yüzey Montaj

NO

Case Connection

ISOLATED

Kılıf / Paket

Module

Current On State It Av Max

280A

Terminal Formu

UNSPECIFIED

Trigger Device Type

SCR

Number Of Scrsdiodes

2 SCRs

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

16 Weeks

Repetitive Peak Offstate Voltage

1600V

Number Of Elements

2

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

HTS Kodu

8541.30.00.80

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Çalışma Sıcaklığı

-40°C~130°C

Ambalaj

Tray

Current Gate Trigger Igt Max

150mA

Terminal Pozisyonu

UPPER

Terminal Sayısı

7

Parça Durumu

Active

Max Repetitive Reverse Voltage Vrrm

1.6kV

Current Non Rep Surge5060hz Itsm

9000A @ 50Hz

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Nem Hassasiyeti (MSL)

Not Applicable

Structure

Series Connection - All SCRs

ECCN Kodu

EAR99

Jesd30 Code

R-XUFM-X7

Reference Standard

IEC-747-6
