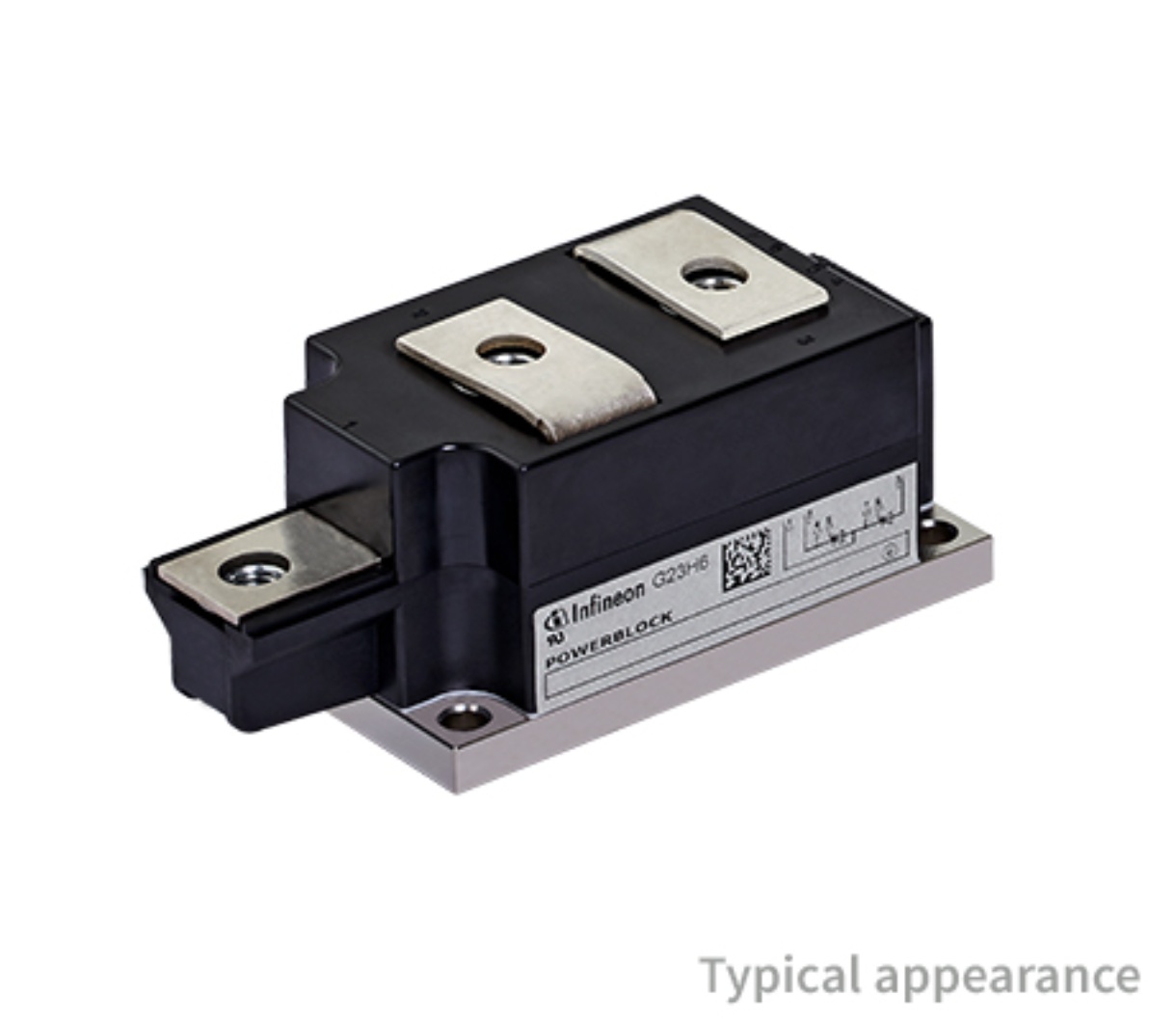

TT250N16KOFHPSA1

Teknik Özellikler

Terminal Formu

UNSPECIFIED

Current On State It Av Max

250A

Number Of Scrsdiodes

2 SCRs

Trigger Device Type

SCR

Montaj Tipi

Chassis Mount

Number Of Elements

2

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Repetitive Peak Offstate Voltage

1600V

Fabrika Tedarik Süresi

8 Weeks

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

HTS Kodu

8541.30.00.80

Çalışma Sıcaklığı

-40°C~125°C

Terminal Pozisyonu

UPPER

Current Gate Trigger Igt Max

200mA

Ambalaj

Bulk

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Current Non Rep Surge5060hz Itsm

8000A @ 50Hz

Max Repetitive Reverse Voltage Vrrm

1.6kV

Parça Durumu

Active

Terminal Sayısı

7

Rms Onstate Currentmax

410A

Structure

Series Connection - All SCRs

Nem Hassasiyeti (MSL)

Not Applicable

ECCN Kodu

EAR99

Jesd30 Code

R-PUFM-X7

Reference Standard

IEC-747-6

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Voltage Gate Trigger Vgt Max

2V

Halogen Free

Not Halogen Free

Max Forward Surge Current Ifsm

7kA

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

Yayın Yılı

2012

Current Hold Ih Max

300mA

Yüzey Montaj

NO

Case Connection

ISOLATED

Kılıf / Paket

Module
