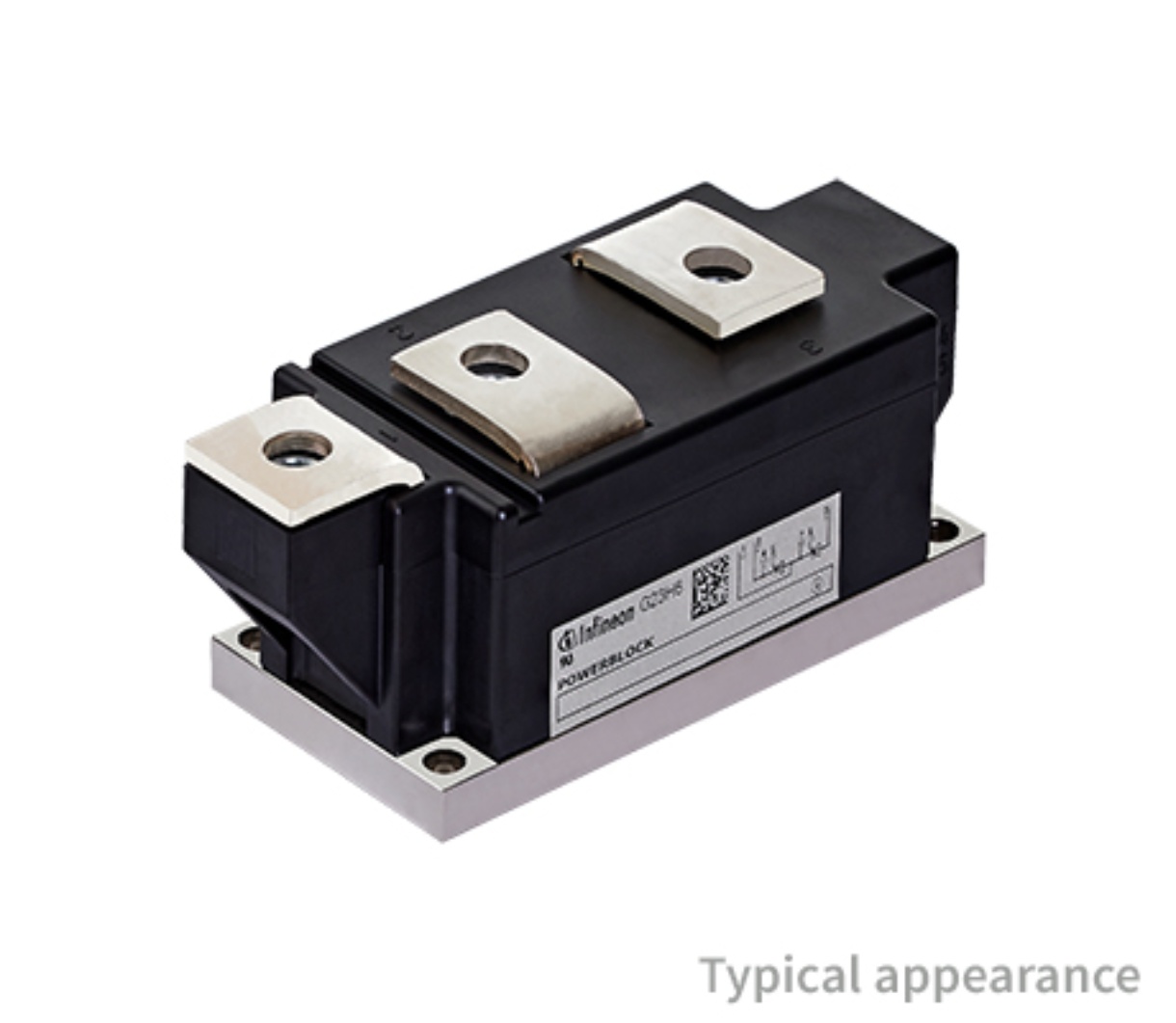

TT240N32KOFHPSA1

Teknik Özellikler

Structure

Series Connection - All SCRs

Nem Hassasiyeti (MSL)

Not Applicable

ECCN Kodu

EAR99

Jesd30 Code

R-XXFM-X7

Reference Standard

IEC-747-6

RoHS Durumu

RoHS Compliant

Terminal Sayısı

7

Parça Durumu

Obsolete

Current Non Rep Surge5060hz Itsm

6100A @ 50Hz

REACH Uyumluluk Kodu

compliant

HTS Kodu

8541.30.00.80

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Repetitive Peak Reverse Voltage

3200V

Çalışma Sıcaklığı

-40°C~125°C

Ambalaj

Bulk

Current Gate Trigger Igt Max

250mA

Terminal Pozisyonu

UNSPECIFIED

Terminal Formu

UNSPECIFIED

Current On State It Av Max

446A

Number Of Scrsdiodes

2 SCRs

Trigger Device Type

SCR

Montaj Tipi

Chassis Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Elements

2

Repetitive Peak Offstate Voltage

3200V

Kılıf / Paket

Module

Yayın Yılı

2003

Current Hold Ih Max

300mA

Yüzey Montaj

NO

Case Connection

ISOLATED

Voltageoff State

3.2kV

Additional Feature

UL RECOGNIZED

Current On State It Rms Max

700A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Voltage Gate Trigger Vgt Max

1.5V
