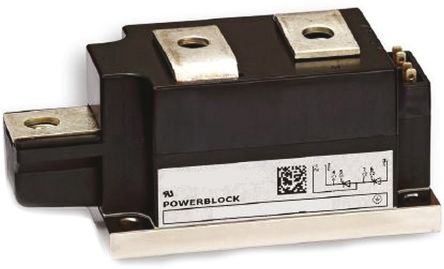

TT170N16KOFHPSA1

Teknik Özellikler

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

8 Weeks

Repetitive Peak Offstate Voltage

1600V

Number Of Elements

2

Current On State It Av Max

223A

Terminal Formu

UNSPECIFIED

Number Of Scrsdiodes

2 SCRs

Trigger Device Type

SCR

Çalışma Sıcaklığı

-40°C~125°C

Terminal Pozisyonu

UPPER

Current Gate Trigger Igt Max

200mA

Ambalaj

Bulk

REACH Uyumluluk Kodu

compliant

HTS Kodu

8541.30.00.80

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Repetitive Peak Reverse Voltage

1600V

Current Non Rep Surge5060hz Itsm

5200A @ 50Hz

Terminal Sayısı

7

Parça Durumu

Active

Jesd30 Code

R-PUFM-X7

Reference Standard

IEC-747-6

Nem Hassasiyeti (MSL)

Not Applicable

Structure

Series Connection - All SCRs

ECCN Kodu

EAR99

Current On State It Rms Max

350A

Voltage Gate Trigger Vgt Max

2V

Voltageoff State

1.6kV

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

Yüzey Montaj

NO

Case Connection

ISOLATED

Yayın Yılı

2017

Current Hold Ih Max

300mA

Kılıf / Paket

Module
