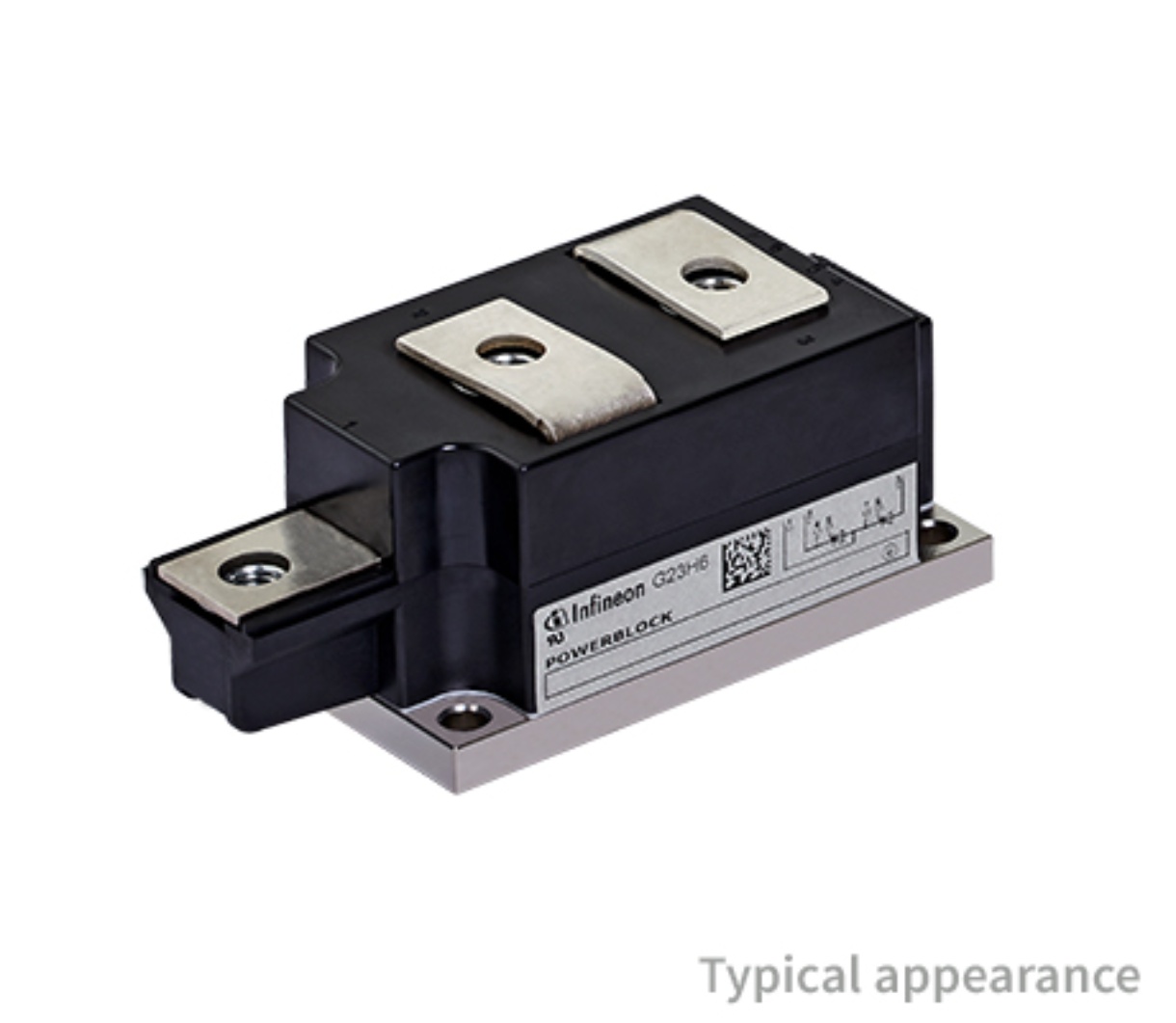

TT150N22KOFHPSA1

Teknik Özellikler

Current On State It Av Max

223A

Terminal Formu

UNSPECIFIED

Trigger Device Type

SCR

Number Of Scrsdiodes

2 SCRs

Montaj Tipi

Chassis Mount

Repetitive Peak Offstate Voltage

2200V

Number Of Elements

2

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

HTS Kodu

8541.30.00.80

REACH Uyumluluk Kodu

compliant

Repetitive Peak Reverse Voltage

2200V

Çalışma Sıcaklığı

-40°C~125°C

Terminal Pozisyonu

UPPER

Current Gate Trigger Igt Max

200mA

Ambalaj

Bulk

Terminal Sayısı

7

Parça Durumu

Obsolete

Current Non Rep Surge5060hz Itsm

4500A @ 50Hz

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Structure

Series Connection - All SCRs

ECCN Kodu

EAR99

Jesd30 Code

R-XUFM-X7

Reference Standard

IEC-747-6

Current On State It Rms Max

350A

Voltage Gate Trigger Vgt Max

2V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Voltageoff State

2.2kV

Additional Feature

UL RECOGNIZED

Yayın Yılı

2003

Current Hold Ih Max

300mA

Yüzey Montaj

NO

Case Connection

ISOLATED

Kılıf / Paket

Module
