TT104N14KOFHPSA1

Teknik Özellikler

Terminal Formu

UNSPECIFIED

Current On State It Av Max

104A

Output Current

160A

Reverse Voltage

1.4kV

Trigger Device Type

SCR

Number Of Scrsdiodes

2 SCRs

Montaj

Screw

Montaj Tipi

Chassis Mount

Number Of Elements

2

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Fabrika Tedarik Süresi

8 Weeks

Repetitive Peak Offstate Voltage

1400V

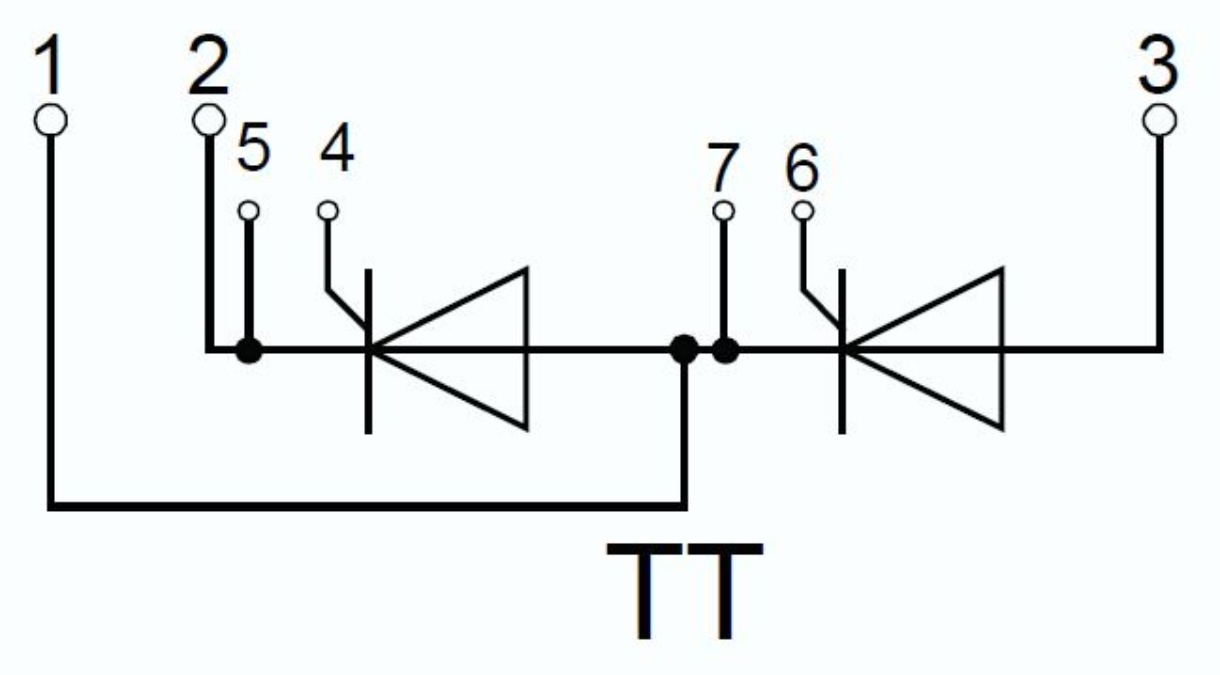

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

HTS Kodu

8541.30.00.80

Çalışma Sıcaklığı

-40°C~140°C

Ambalaj

Bulk

Current Gate Trigger Igt Max

120mA

Terminal Pozisyonu

UPPER

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Terminal Sayısı

7

Parça Durumu

Active

Max Repetitive Reverse Voltage Vrrm

1.4kV

Current Non Rep Surge5060hz Itsm

2050A @ 50Hz

Structure

Series Connection - All SCRs

Nem Hassasiyeti (MSL)

Not Applicable

ECCN Kodu

EAR99

Jesd30 Code

R-XUFM-X7

Current On State It Rms Max

160A

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Voltage Gate Trigger Vgt Max

1.4V

Halogen Free

Not Halogen Free

Max Forward Surge Current Ifsm

1.8kA

Additional Feature

UL RECOGNIZED

Yayın Yılı

2003

Case Connection

ISOLATED

Hold Current

200mA

Kılıf / Paket

Module
