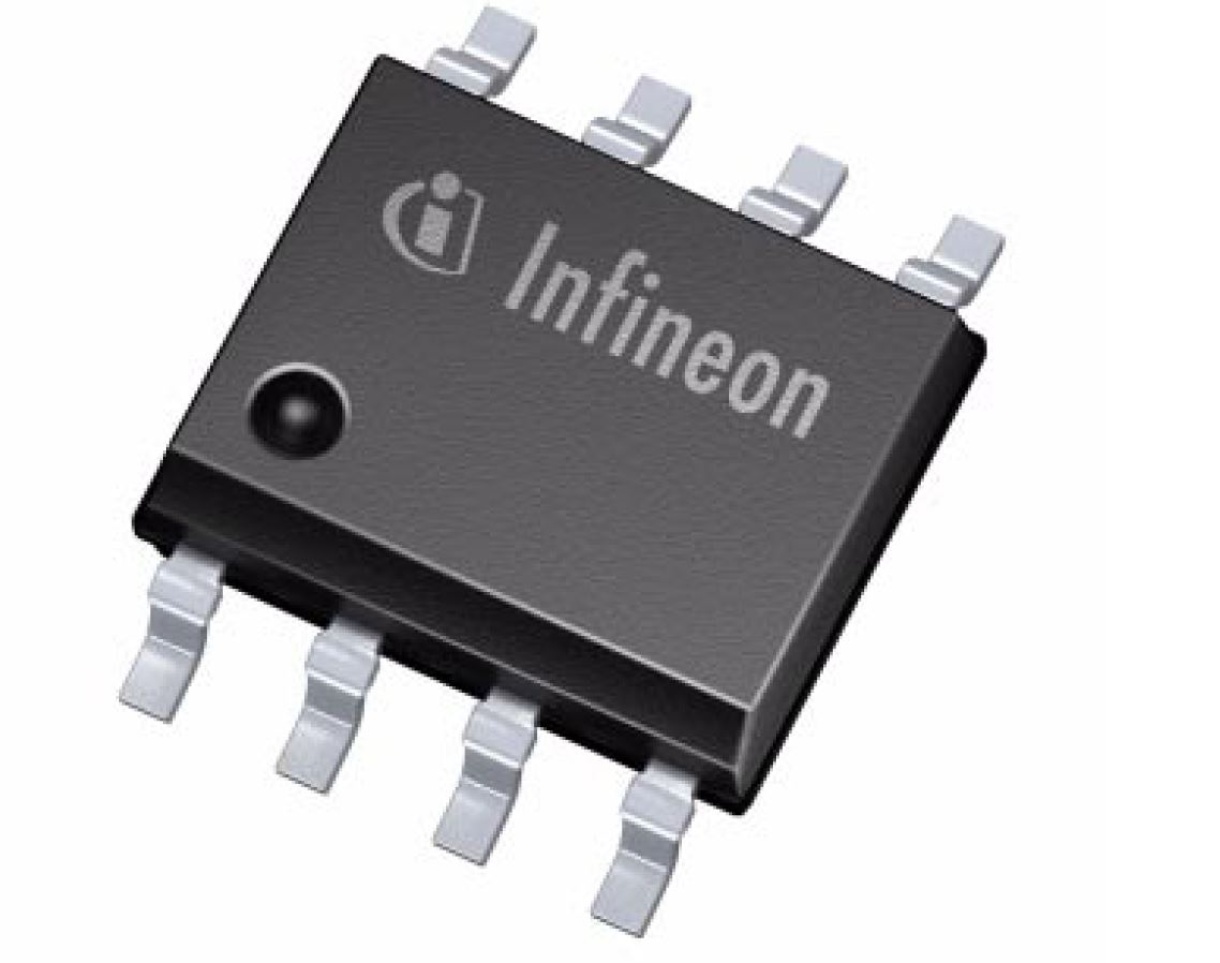

TLE4998C8DXUMA1

Teknik Özellikler

Çıkış Tipi

DIGITAL CURRENT

Body Height

1.2mm

Yayın Yılı

2014

Housing

PLASTIC

Operating Temperature Max

125°C

Kurşunsuz Kodu

yes

Terminal Kaplaması

Tin (Sn)

Yüzey Montaj

YES

Supply Voltagemin Vsup

4.5V

Sensorstransducers Type

MAGNETIC FIELD SENSOR,HALL EFFECT

Additional Feature

AEC-Q100; IT ALSO OPERATES AT EXTENDED RANGE 4.1 TO 16V SUPPLY VOLTAGE; IT HAS SENSITIVITY OF 245 LSB12/MT; SHORT-CIRCUIT PROTECTION

Body Length Or Diameter

5mm

Magnetic Field Rangemin

-50 mT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Output Currentmax

5mA

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Discontinued

Seri

Automotive, AEC-Q100

JESD-609 Kodu

e3

Ambalaj

Tape & Reel (TR)

Output Range

0-5mA

Termination Type

SOLDER

Operating Temperature Min

-40°C

Magnetic Field Rangemax

200 mT

Supply Voltagemax Vsup

5.5V

Body Breadth

3.9 mm

Fabrika Tedarik Süresi

26 Weeks

Mounting Feature

SURFACE MOUNT

Operating Currentmax

8mA
