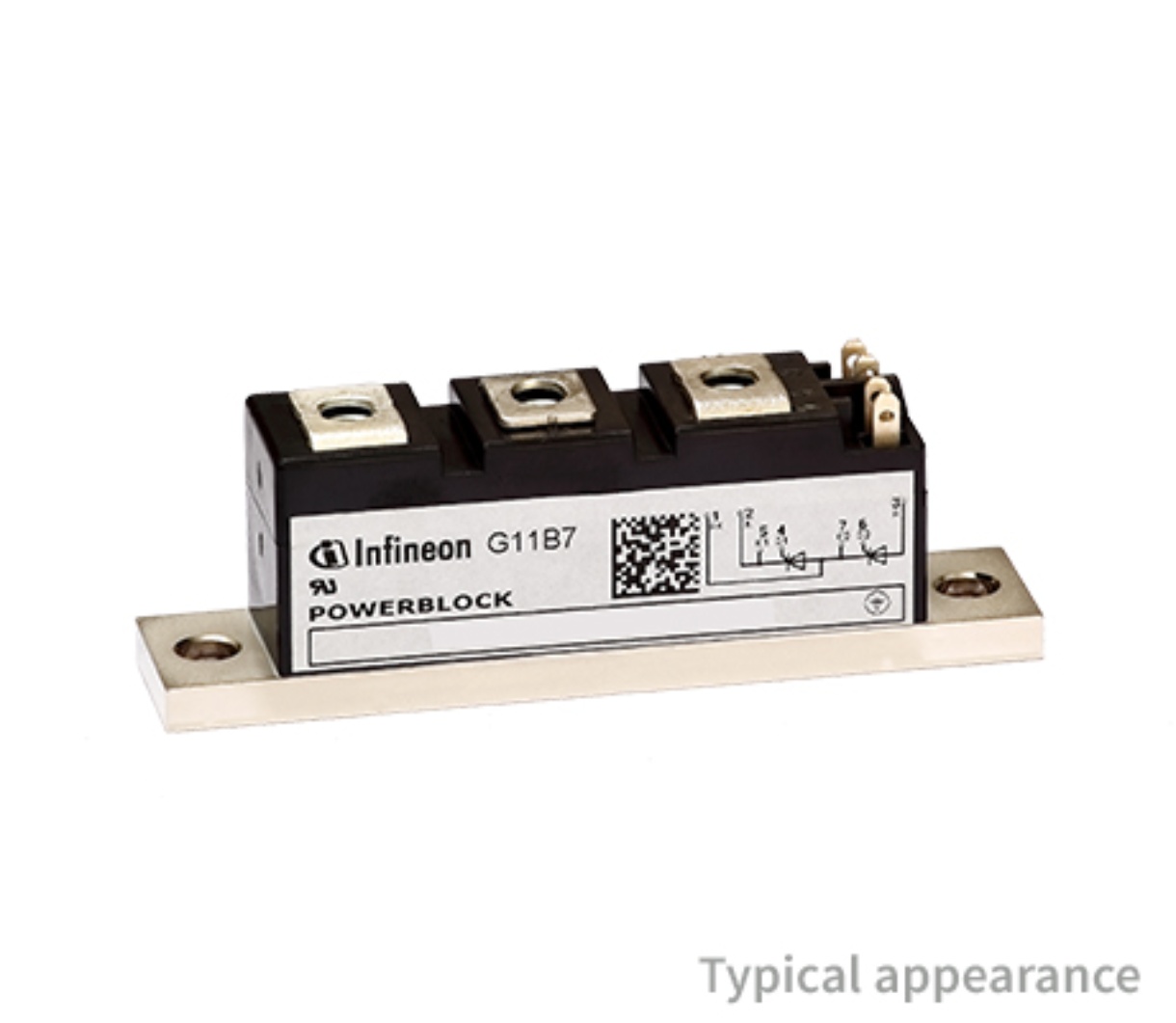

TD92N12KOFHPSA1

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Configuration

SINGLE WITH BUILT-IN DIODE

Kurşunsuz

Lead Free

Terminal Sayısı

5

Ambalaj

Tray

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Çalışma Sıcaklığı

-40°C~130°C

Repetitive Peak Offstate Voltage

1200V

Current On State It Av Max

104A

Yayın Yılı

2003

Max Forward Surge Current Ifsm

1.8kA

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Formu

UNSPECIFIED

Montaj Tipi

Chassis Mount

Montaj

Screw

ECCN Kodu

EAR99

Max Repetitive Reverse Voltage Vrrm

1.2kV

Number Of Elements

1

Hold Current

200mA

Kılıf / Paket

Module

Additional Feature

UL RECOGNIZED

Fabrika Tedarik Süresi

8 Weeks

Terminal Pozisyonu

UPPER

Reference Standard

IEC-747-6

Voltageoff State

1.6kV

Number Of Scrsdiodes

1 SCR, 1 Diode

HTS Kodu

8541.30.00.80

Case Connection

ISOLATED

Reverse Voltage

1.2kV

Jesd30 Code

R-XUFM-X5

Halogen Free

Not Halogen Free

Current Gate Trigger Igt Max

120mA

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Pin Sayısı

92

Output Current

160A

Structure

Series Connection - SCR/Diode

Trigger Device Type

SCR

Voltage Gate Trigger Vgt Max

1.4V

Current Non Rep Surge5060hz Itsm

2050A @ 50Hz
