TD600N16KOFHPSA2

Teknik Özellikler

Fabrika Tedarik Süresi

8 Weeks

Kılıf / Paket

Module

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

Number Of Elements

1

ECCN Kodu

EAR99

Current On State It Rms Max

1050A

Number Of Scrsdiodes

2 SCRs

Voltageoff State

1.6kV

Reference Standard

IEC-747-6

Terminal Pozisyonu

UPPER

Current On State It Av Max

600A

Repetitive Peak Offstate Voltage

1600V

Çalışma Sıcaklığı

125°C TJ

Yüzey Montaj

NO

Ambalaj

Bulk

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

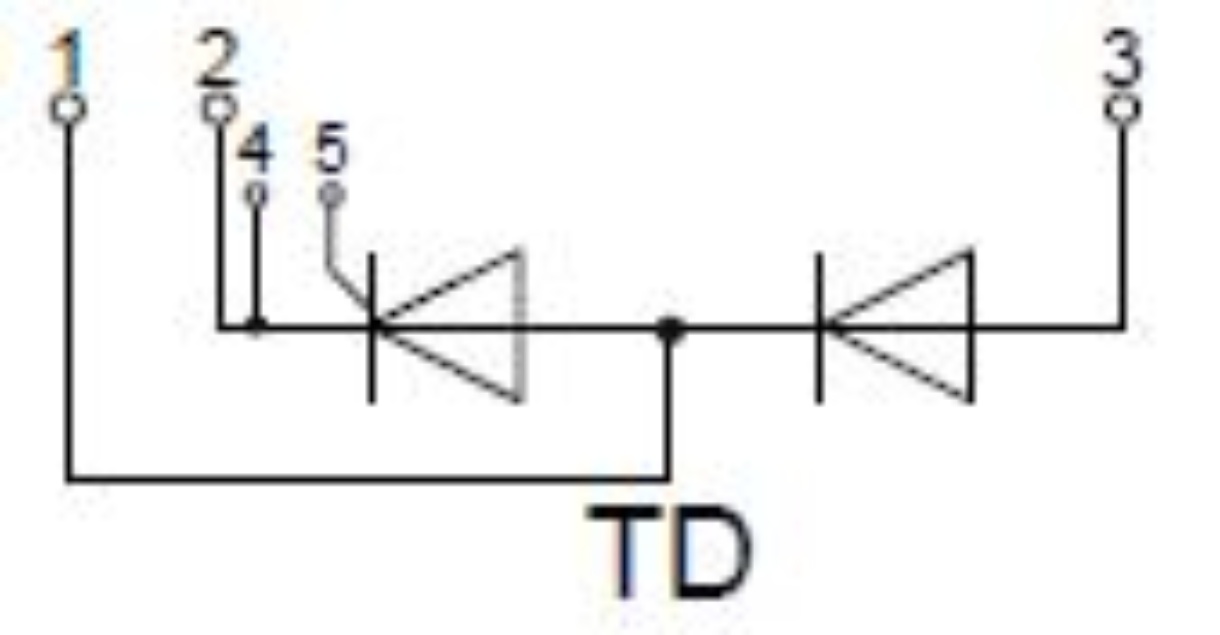

Configuration

SINGLE WITH BUILT-IN DIODE

Terminal Sayısı

5

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Terminal Formu

UNSPECIFIED

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Yayın Yılı

2012

Structure

Series Connection - All SCRs

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Current Gate Trigger Igt Max

250mA

Current Hold Ih Max

300mA

Voltage Gate Trigger Vgt Max

2V

Repetitive Peak Reverse Voltage

1600V

Trigger Device Type

SCR

Case Connection

ISOLATED

HTS Kodu

8541.30.00.80

Jesd30 Code

R-PUFM-X5
