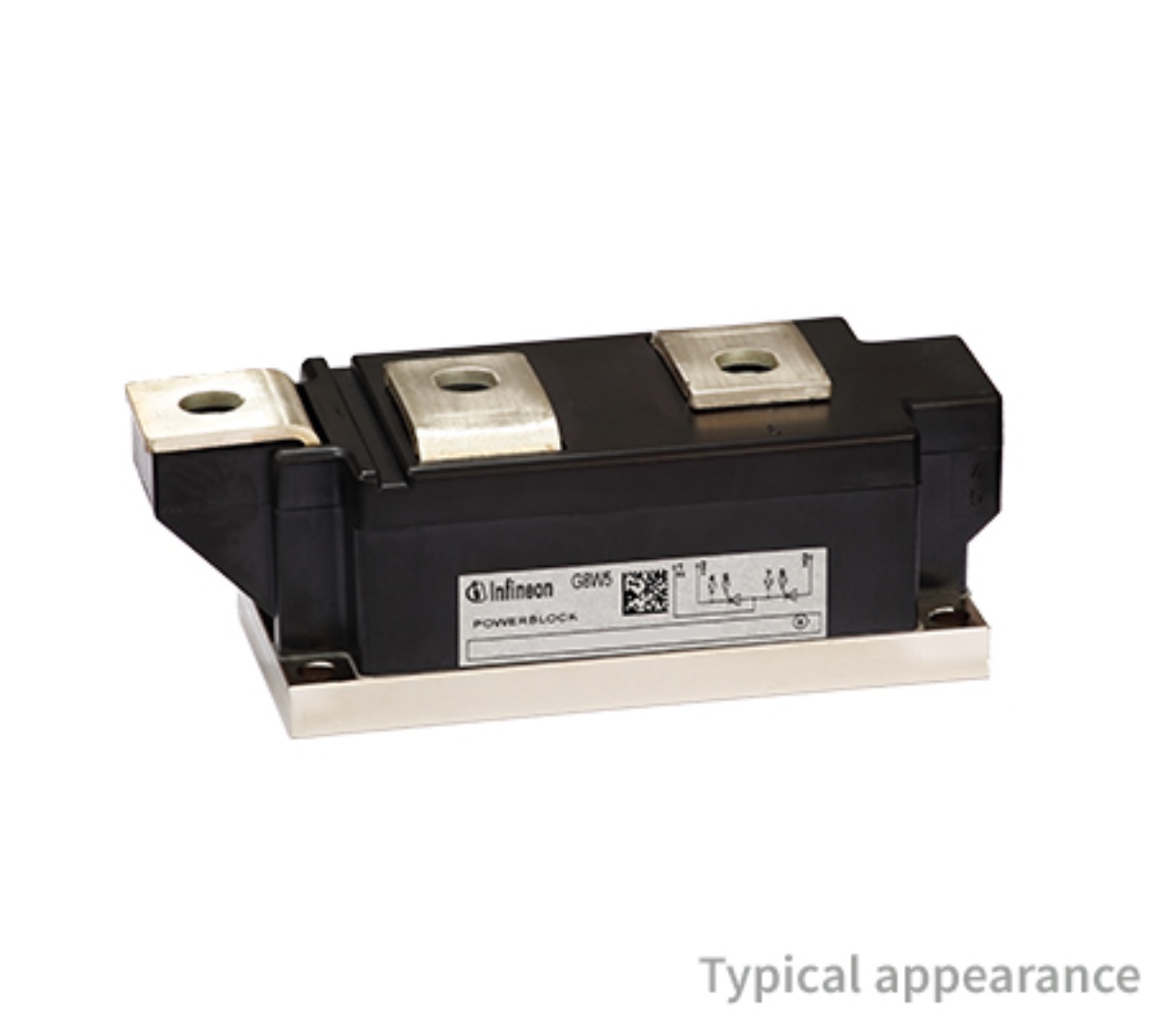

TD310N22KOFHPSA1

Teknik Özellikler

Configuration

SINGLE WITH BUILT-IN DIODE

Montaj Tipi

Chassis Mount

Additional Feature

UL RECOGNIZED

HTS Kodu

8541.30.00.80

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Gate Trigger Vgt Max

1.5V

RoHS Durumu

ROHS3 Compliant

Current Gate Trigger Igt Max

250mA

Parça Durumu

Obsolete

Repetitive Peak Reverse Voltage

2200V

Repetitive Peak Offstate Voltage

2200V

Current On State It Rms Max

700A

Kılıf / Paket

Module

Çalışma Sıcaklığı

-40°C~125°C

Fabrika Tedarik Süresi

12 Weeks

Number Of Scrsdiodes

1 SCR, 1 Diode

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yüzey Montaj

NO

Terminal Formu

UNSPECIFIED

Current Hold Ih Max

300mA

Jesd30 Code

R-XUFM-X5

Case Connection

ISOLATED

Terminal Pozisyonu

UPPER

Yayın Yılı

2003

ECCN Kodu

EAR99

Number Of Elements

1

Current On State It Av Max

446A

Trigger Device Type

SCR

Structure

Series Connection - SCR/Diode

Reference Standard

IEC-747-6

Terminal Sayısı

5

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Ambalaj

Tray

Current Non Rep Surge5060hz Itsm

10000A @ 50Hz

Voltageoff State

2.6kV
