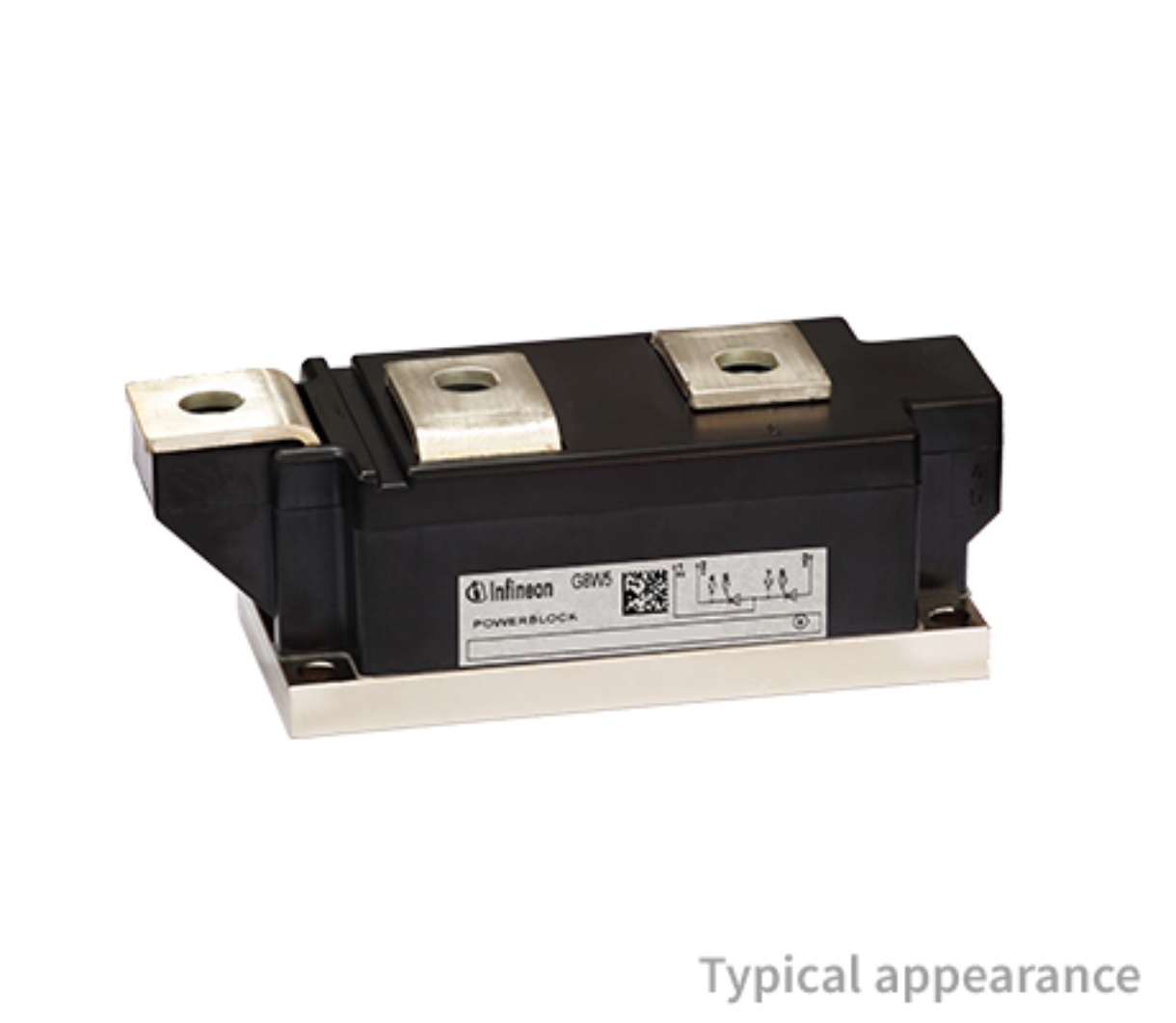

TD310N20KOFHPSA1

Teknik Özellikler

Voltage Gate Trigger Vgt Max

1.5V

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Montaj Tipi

Chassis Mount

Configuration

SINGLE WITH BUILT-IN DIODE

HTS Kodu

8541.30.00.80

Additional Feature

UL RECOGNIZED

Current Gate Trigger Igt Max

250mA

Other Names

SP000091494 TD310N20KOF

Parça Durumu

Obsolete

Repetitive Peak Reverse Voltage

2000V

Çalışma Sıcaklığı

-40°C~125°C

Fabrika Tedarik Süresi

12 Weeks

Number Of Scrsdiodes

1 SCR, 1 Diode

Repetitive Peak Offstate Voltage

2000V

Current On State It Rms Max

700A

Kılıf / Paket

Module

Terminal Formu

UNSPECIFIED

Yüzey Montaj

NO

Current Hold Ih Max

300mA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Case Connection

ISOLATED

Yayın Yılı

2003

Terminal Pozisyonu

UPPER

Jesd30 Code

R-XUFM-X5

Structure

Series Connection - SCR/Diode

Trigger Device Type

SCR

REACH Uyumluluk Kodu

compliant

Reference Standard

IEC-747-6

ECCN Kodu

EAR99

Current On State It Av Max

446A

Number Of Elements

1

Terminal Sayısı

5

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Current Non Rep Surge5060hz Itsm

10000A @ 50Hz

Lead Free Status Rohs Status

Lead free / RoHS Compliant

Ambalaj

Tray

Voltageoff State

2.6kV
