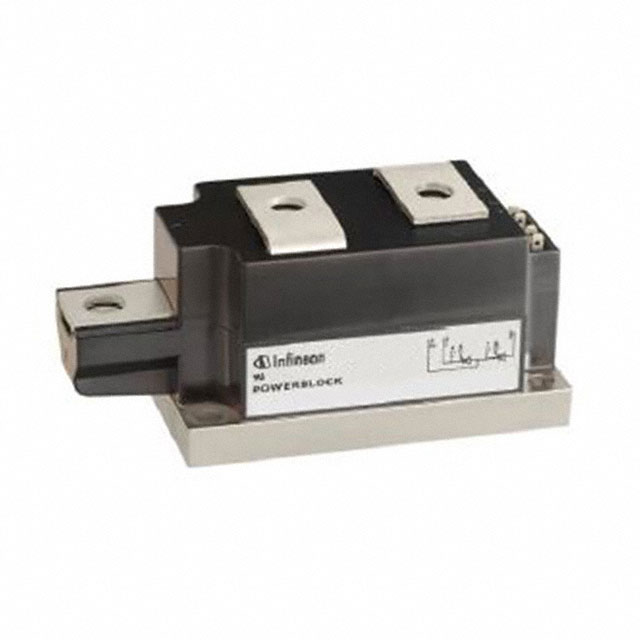

TD250N16KOFHPSA1

Teknik Özellikler

ECCN Kodu

EAR99

Current On State It Av Max

250A

Number Of Elements

1

Halogen Free

Not Halogen Free

Trigger Device Type

SCR

Structure

Series Connection - SCR/Diode

Hold Current

300mA

Reference Standard

IEC-747-6

Pin Sayısı

250

Jesd30 Code

R-PUFM-X5

Case Connection

ISOLATED

Yayın Yılı

2012

Terminal Pozisyonu

UPPER

Voltageoff State

1.8kV

Current Non Rep Surge5060hz Itsm

8000A @ 50Hz

Ambalaj

Tray

Max Repetitive Reverse Voltage Vrrm

1.6kV

Kurşunsuz

Lead Free

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Sayısı

5

Max Forward Surge Current Ifsm

7kA

Parça Durumu

Active

Current Gate Trigger Igt Max

200mA

Montaj

Screw

Montaj Tipi

Chassis Mount

Configuration

SINGLE WITH BUILT-IN DIODE

HTS Kodu

8541.30.00.80

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Gate Trigger Vgt Max

2V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Formu

UNSPECIFIED

Output Current

410A

Reverse Voltage Dc

1.6kV

Repetitive Peak Offstate Voltage

1600V

Kılıf / Paket

Module

Fabrika Tedarik Süresi

8 Weeks

Çalışma Sıcaklığı

-40°C~125°C

Number Of Scrsdiodes

1 SCR, 1 Diode
