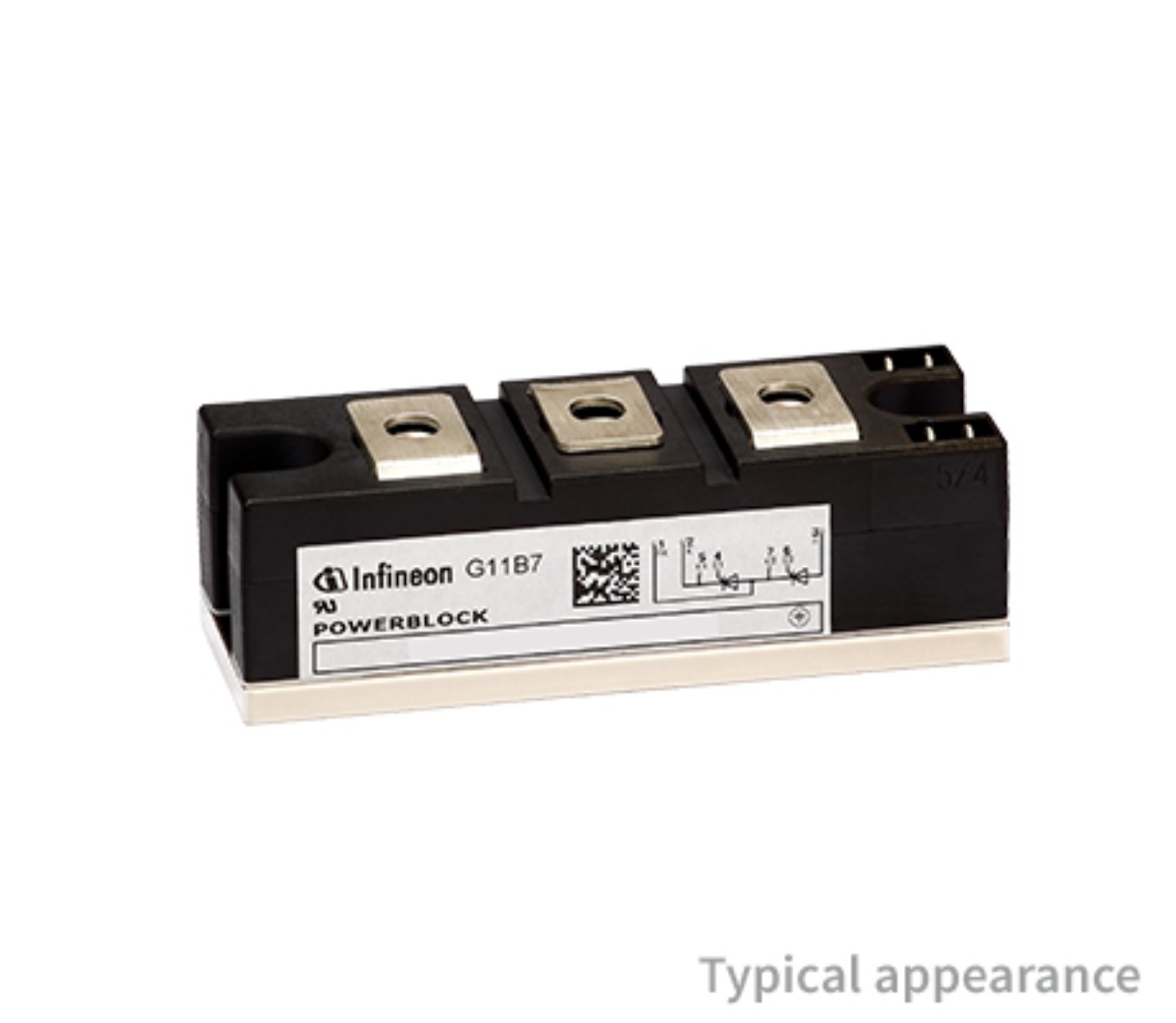

TD162N16KOFHPSA1

Teknik Özellikler

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Sayısı

5

Max Forward Surge Current Ifsm

4.4kA

Max Repetitive Reverse Voltage Vrrm

1.6kV

Kurşunsuz

Lead Free

Current Non Rep Surge5060hz Itsm

5200A @ 50Hz

Ambalaj

Tray

Jesd30 Code

R-XUFM-X5

Yayın Yılı

2003

Terminal Pozisyonu

UPPER

Case Connection

ISOLATED

Number Of Elements

1

Current On State It Av Max

162A

ECCN Kodu

EAR99

Halogen Free

Not Halogen Free

Trigger Device Type

SCR

Structure

Series Connection - SCR/Diode

Kılıf / Paket

Module

Current On State It Rms Max

260A

Repetitive Peak Offstate Voltage

1600V

Number Of Scrsdiodes

1 SCR, 1 Diode

Fabrika Tedarik Süresi

8 Weeks

Çalışma Sıcaklığı

-40°C~125°C

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Current Hold Ih Max

200mA

Terminal Formu

UNSPECIFIED

Yüzey Montaj

NO

Additional Feature

UL RECOGNIZED

HTS Kodu

8541.30.00.80

Montaj Tipi

Chassis Mount

Configuration

SINGLE WITH BUILT-IN DIODE

RoHS Durumu

ROHS3 Compliant

Voltage Gate Trigger Vgt Max

2V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Current Gate Trigger Igt Max

150mA
