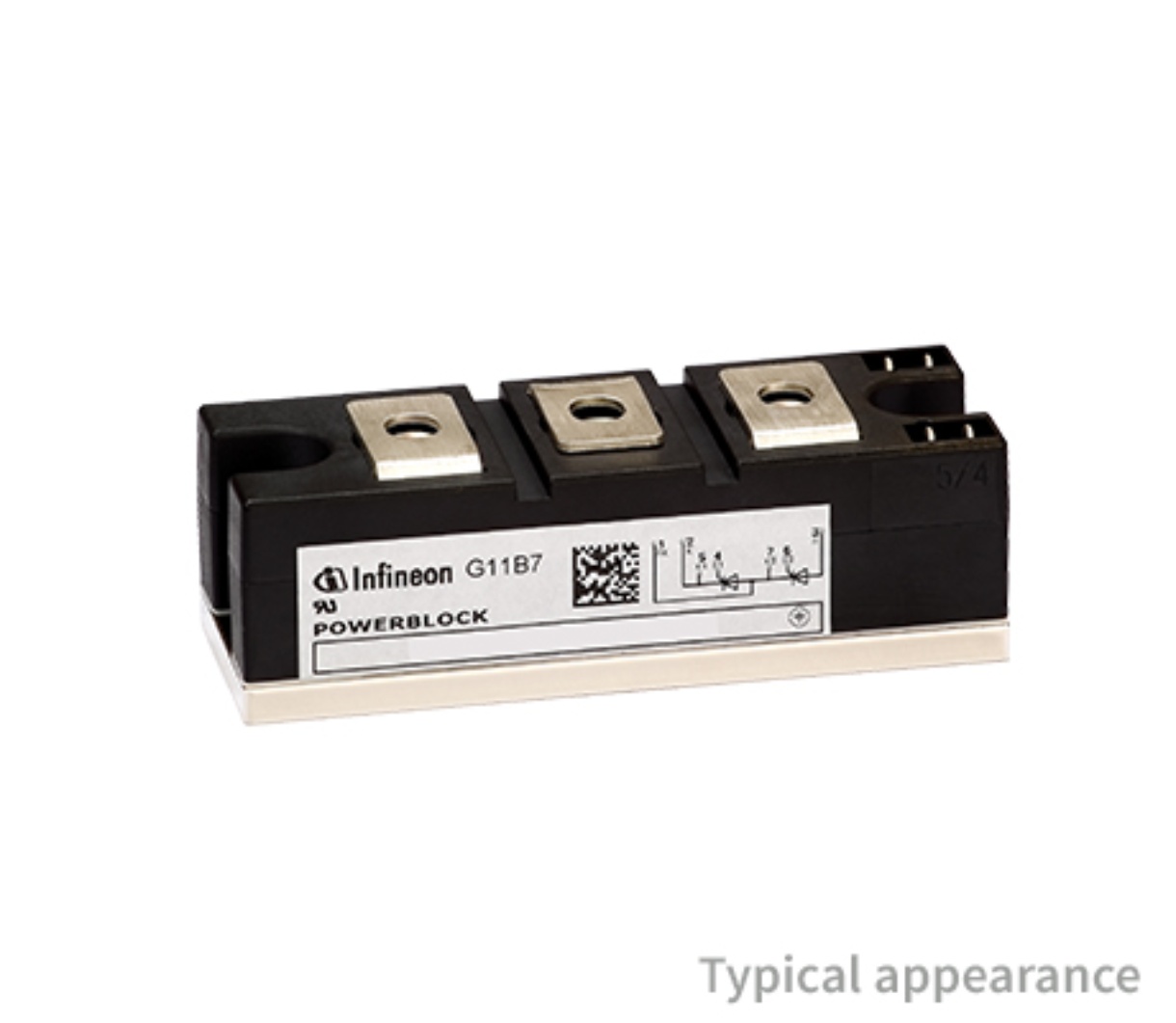

TD122N22KOFHPSA1

Teknik Özellikler

Voltageoff State

2.4kV

Current Non Rep Surge5060hz Itsm

3300A @ 50Hz

Ambalaj

Tray

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Sayısı

5

Reference Standard

IEC-747-6

Trigger Device Type

SCR

Structure

Series Connection - SCR/Diode

Number Of Elements

1

Current On State It Av Max

140A

ECCN Kodu

EAR99

Yayın Yılı

2003

Terminal Pozisyonu

UPPER

Case Connection

ISOLATED

Jesd30 Code

R-XUFM-X5

Current Hold Ih Max

300mA

Yüzey Montaj

NO

Terminal Formu

UNSPECIFIED

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Scrsdiodes

1 SCR, 1 Diode

Fabrika Tedarik Süresi

8 Weeks

Çalışma Sıcaklığı

-40°C~125°C

Kılıf / Paket

Module

Repetitive Peak Offstate Voltage

2200V

Current On State It Rms Max

220A

Parça Durumu

Active

Repetitive Peak Reverse Voltage

2200V

Current Gate Trigger Igt Max

200mA

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Gate Trigger Vgt Max

2V

HTS Kodu

8541.30.00.80

Additional Feature

UL RECOGNIZED

Montaj Tipi

Chassis Mount

Configuration

SINGLE WITH BUILT-IN DIODE
