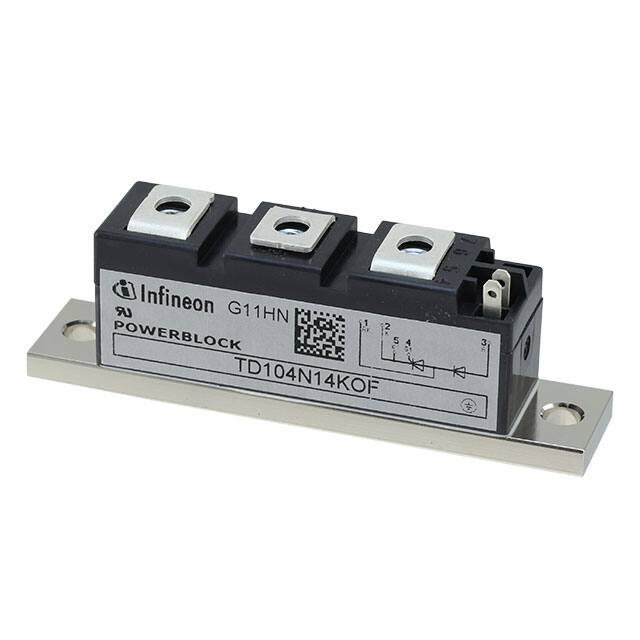

TD104N14KOFHPSA1

Teknik Özellikler

Case Connection

ISOLATED

Yayın Yılı

2003

Terminal Pozisyonu

UPPER

Jesd30 Code

R-XUFM-X5

REACH Uyumluluk Kodu

compliant

Structure

Series Connection - All SCRs

Trigger Device Type

SCR

ECCN Kodu

EAR99

Current On State It Av Max

104A

Number Of Elements

1

Terminal Sayısı

5

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Ambalaj

Bulk

Voltageoff State

1.4kV

Voltage Gate Trigger Vgt Max

1.4V

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Montaj Tipi

Surface Mount

Configuration

SINGLE WITH BUILT-IN DIODE

HTS Kodu

8541.30.00.80

Additional Feature

UL RECOGNIZED

Current Gate Trigger Igt Max

120mA

Repetitive Peak Reverse Voltage

1400V

Parça Durumu

Obsolete

Fabrika Tedarik Süresi

6 Weeks

Number Of Scrsdiodes

2 SCRs

Current On State It Rms Max

160A

Repetitive Peak Offstate Voltage

1400V

Kılıf / Paket

Module

Terminal Formu

UNSPECIFIED

Yüzey Montaj

NO

Current Hold Ih Max

200mA

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED
