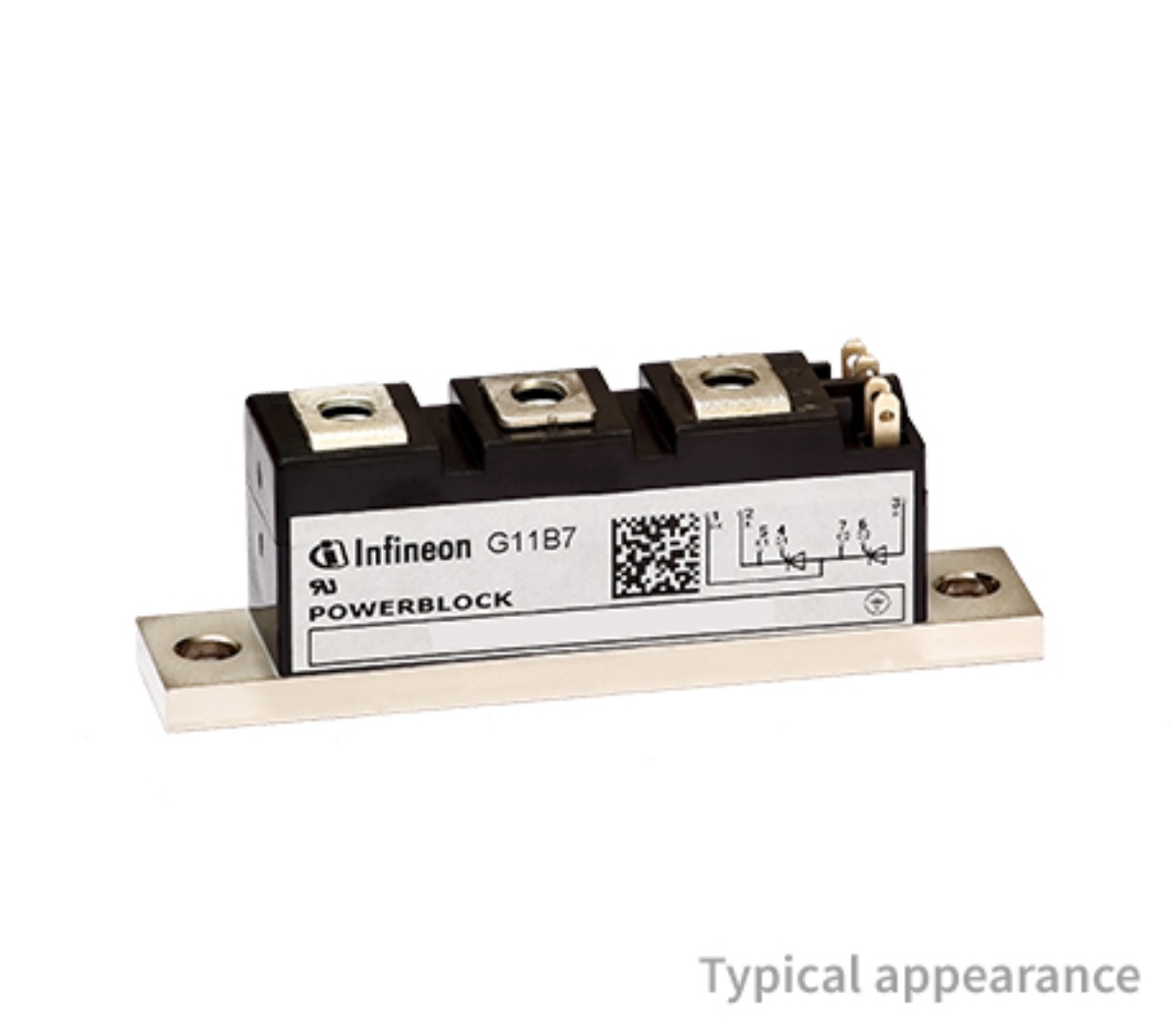

TD104N12KOFHPSA1

Teknik Özellikler

Current Gate Trigger Igt Max

120mA

Repetitive Peak Reverse Voltage

1200V

Parça Durumu

Active

Voltage Gate Trigger Vgt Max

1.4V

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

HTS Kodu

8541.30.00.80

Additional Feature

UL RECOGNIZED

Configuration

SINGLE WITH BUILT-IN DIODE

Montaj Tipi

Chassis Mount

Current Hold Ih Max

200mA

Terminal Formu

UNSPECIFIED

Yüzey Montaj

NO

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Number Of Scrsdiodes

1 SCR, 1 Diode

Çalışma Sıcaklığı

-40°C~140°C

Fabrika Tedarik Süresi

8 Weeks

Kılıf / Paket

Module

Repetitive Peak Offstate Voltage

1200V

Current On State It Rms Max

160A

Reference Standard

IEC-747-6

Trigger Device Type

SCR

Structure

Series Connection - SCR/Diode

Current On State It Av Max

104A

Number Of Elements

1

ECCN Kodu

EAR99

Yayın Yılı

2003

Terminal Pozisyonu

UPPER

Case Connection

ISOLATED

Jesd30 Code

R-XUFM-X5

Ambalaj

Tray

Current Non Rep Surge5060hz Itsm

2050A @ 50Hz

Voltageoff State

1.4kV

Terminal Sayısı

5

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
