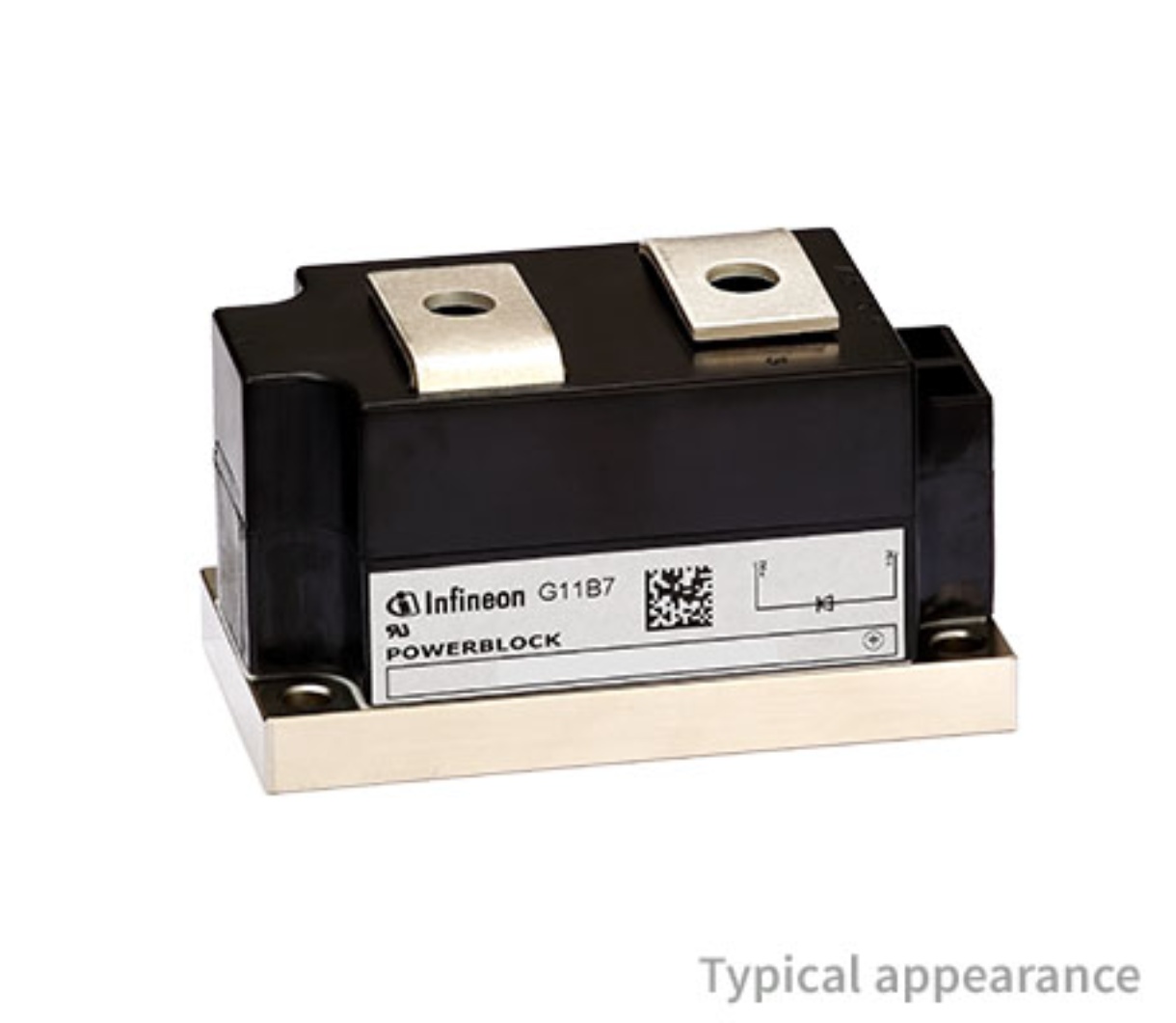

ND260N12KHPSA1

Teknik Özellikler

Ambalaj

Tray

Number Of Phases

1

Max Repetitive Reverse Voltage Vrrm

1.2kV

Reverse Currentmax

30000μA

Diode Type

Standard

Max Forward Surge Current Ifsm

8.3kA

Terminal Pozisyonu

UPPER

Reverse Voltage

1.2kV

Terminal Sayısı

2

Operating Temperature Max

150°C

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

ECCN Kodu

EAR99

Diode Element Material

SILICON

Terminal Formu

UNSPECIFIED

Speed

Standard Recovery >500ns, > 200mA (Io)

Yüzey Montaj

NO

Configuration

SINGLE

Pin Sayısı

260

Current Reverse Leakage Vr

20mA @ 1200V

RoHS Durumu

ROHS3 Compliant

Halogen Free

Not Halogen Free

Additional Feature

UL RECOGNIZED

Number Of Elements

1

Voltage Dc Reverse Vr Max

1200V

Fabrika Tedarik Süresi

8 Weeks

HTS Kodu

8541.10.00.80

Operating Temperature Junction

-40°C~135°C

Kılıf / Paket

Module

Kurşunsuz

Lead Free

Case Connection

ISOLATED

Montaj Tipi

Chassis Mount

Yayın Yılı

2003

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Forward Voltagemax

1.32V

Output Current

410A

Current Average Rectified Io

104A

Nonrep Pk Forward Currentmax

8300A

Applications

GENERAL PURPOSE

Jesd30 Code

R-XUFM-X2
