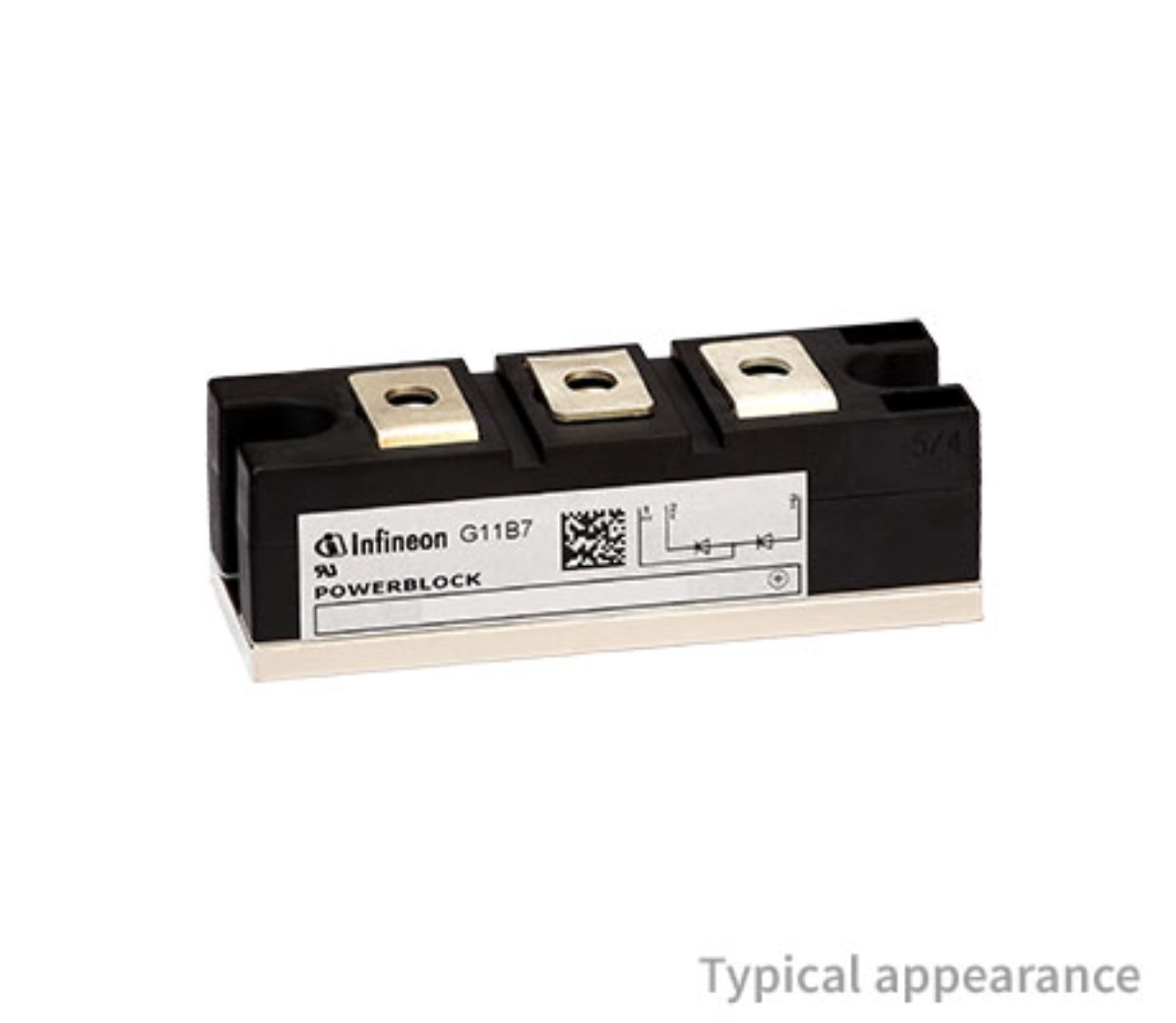

ND171N12KHPSA1

Teknik Özellikler

HTS Kodu

8541.10.00.80

Fabrika Tedarik Süresi

8 Weeks

Additional Feature

UL RECOGNIZED

Number Of Elements

1

Voltage Dc Reverse Vr Max

1200V

RoHS Durumu

ROHS3 Compliant

Current Reverse Leakage Vr

20mA @ 1200V

Montaj Tipi

Chassis Mount

Case Connection

ISOLATED

Kılıf / Paket

Module

Operating Temperature Junction

-40°C~135°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yayın Yılı

2012

Rep Pk Reverse Voltagemax

1200V

Parça Durumu

Active

Applications

GENERAL PURPOSE

Jesd30 Code

R-XUFM-X3

Current Average Rectified Io

171A

Nonrep Pk Forward Currentmax

5600A

Diode Type

Standard

Ambalaj

Tray

Number Of Phases

1

Terminal Pozisyonu

UPPER

Output Currentmax

171A

Operating Temperature Max

150°C

Terminal Sayısı

3

Configuration

SINGLE

Yüzey Montaj

NO

Speed

Standard Recovery >500ns, > 200mA (Io)

Terminal Formu

UNSPECIFIED

Diode Element Material

SILICON

ECCN Kodu

EAR99

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED
