IRLHS6276TR2PBF

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2013

Seri

HEXFET®

Turn On Delay Time

4.4 ns

Fet Feature

Logic Level Gate

Recovery Time

7.8 ns

Vgsth Max Id

1.1V @ 10μA

Parça Durumu

Obsolete

Montaj

Surface Mount

Yükseklik

950μm

RoHS Durumu

RoHS Compliant

Pin Sayısı

6

Min. Çalışma Sıcaklığı

-55°C

Number Of Elements

2

Power Max

1.5W

Temel Parça No

IRLHS6276PBF

Input Capacitance

310pF

Power Dissipation

1.5W

Montaj Tipi

Surface Mount

Max Power Dissipation

1.5W

Rise Time

9.3ns

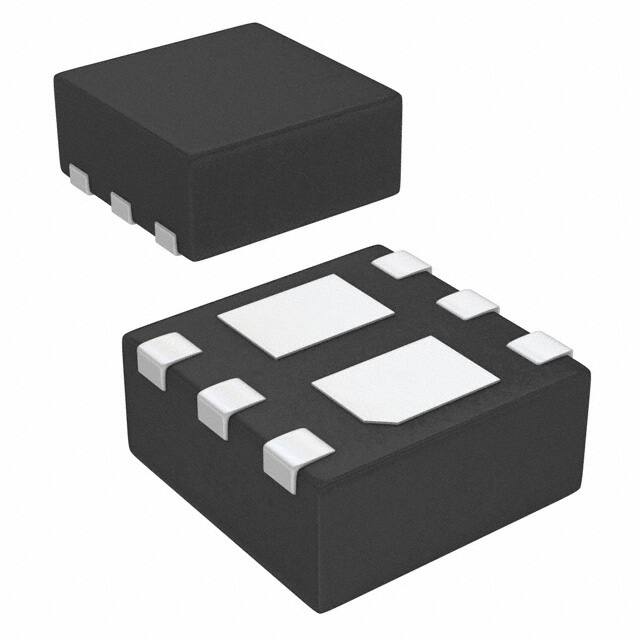

Kılıf / Paket

6-PowerVDFN

Nominal Vgs

800 mV

Rds On Max Id Vgs

45mOhm @ 3.4A, 4.5V

Turn Off Delay Time

10 ns

Uzunluk

2.1mm

Input Capacitance Ciss Max Vds

310pF @ 10V

Continuous Drain Current Id

4.5A

Maks. Çalışma Sıcaklığı

150°C

Reach Svhc

No SVHC

Fall Time Typ

4.9 ns

Threshold Voltage

800mV

Gate To Source Voltage Vgs

12V

Genişlik

2.1mm

Fet Type

2 N-Channel (Dual)

Drain To Source Breakdown Voltage

20V

Element Configuration

Dual

Gate Charge Qg Max Vgs

3.1nC @ 4.5V

Rds On Max

45 mΩ

Ambalaj

Cut Tape (CT)
