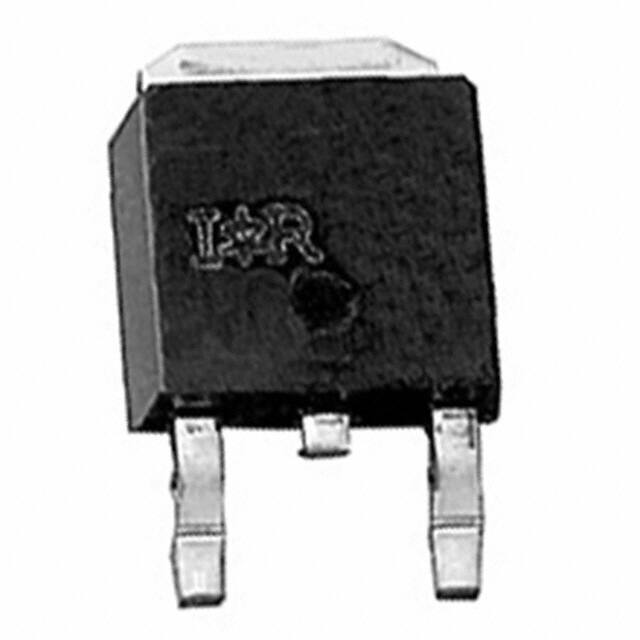

IRG4RC20F

Teknik Özellikler

Yüzey Montaj

YES

Current Collector Pulsed Icm

44A

Yayın Yılı

2001

Turn On Time

51 ns

ECCN Kodu

EAR99

Voltage Collector Emitter Breakdown Max

600V

Jedec95 Code

TO-252AA

JESD-609 Kodu

e0

Terminal Formu

GULL WING

Case Connection

COLLECTOR

Configuration

SINGLE

Parça Durumu

Obsolete

HTS Kodu

8541.29.00.95

Kılıf / Paket

TO-252-3, DPak (2 Leads + Tab), SC-63

Additional Feature

FAST

Terminal Sayısı

2

Temel Parça No

IRG4RC20F

Tepe Reflow Sıcaklığı (°C)

245

Number Of Elements

1

Polaritychannel Type

N-CHANNEL

Td Onoff25c

26ns/194ns

Jesd30 Code

R-PSSO-G2

Transistor Element Material

SILICON

Montaj Tipi

Surface Mount

RoHS Durumu

Non-RoHS Compliant

Currentcollector Ic Max

22A

Tepe Reflow Süresi (maks. sn)

30

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Turn Off Timenom Toff

706 ns

Power Max

66W

Qualification Status

Not Qualified

Test Conditions

480V, 12A, 50 Ω, 15V

Giriş Tipi

Standard

Transistor Application

POWER CONTROL

Gate Charge

27nC

Çalışma Sıcaklığı

-55°C~150°C TJ

Vceon Max Vge Ic

2.1V @ 15V, 12A

Terminal Pozisyonu

SINGLE

Switching Energy

190μJ (on), 920μJ (off)

Ambalaj

Tube
