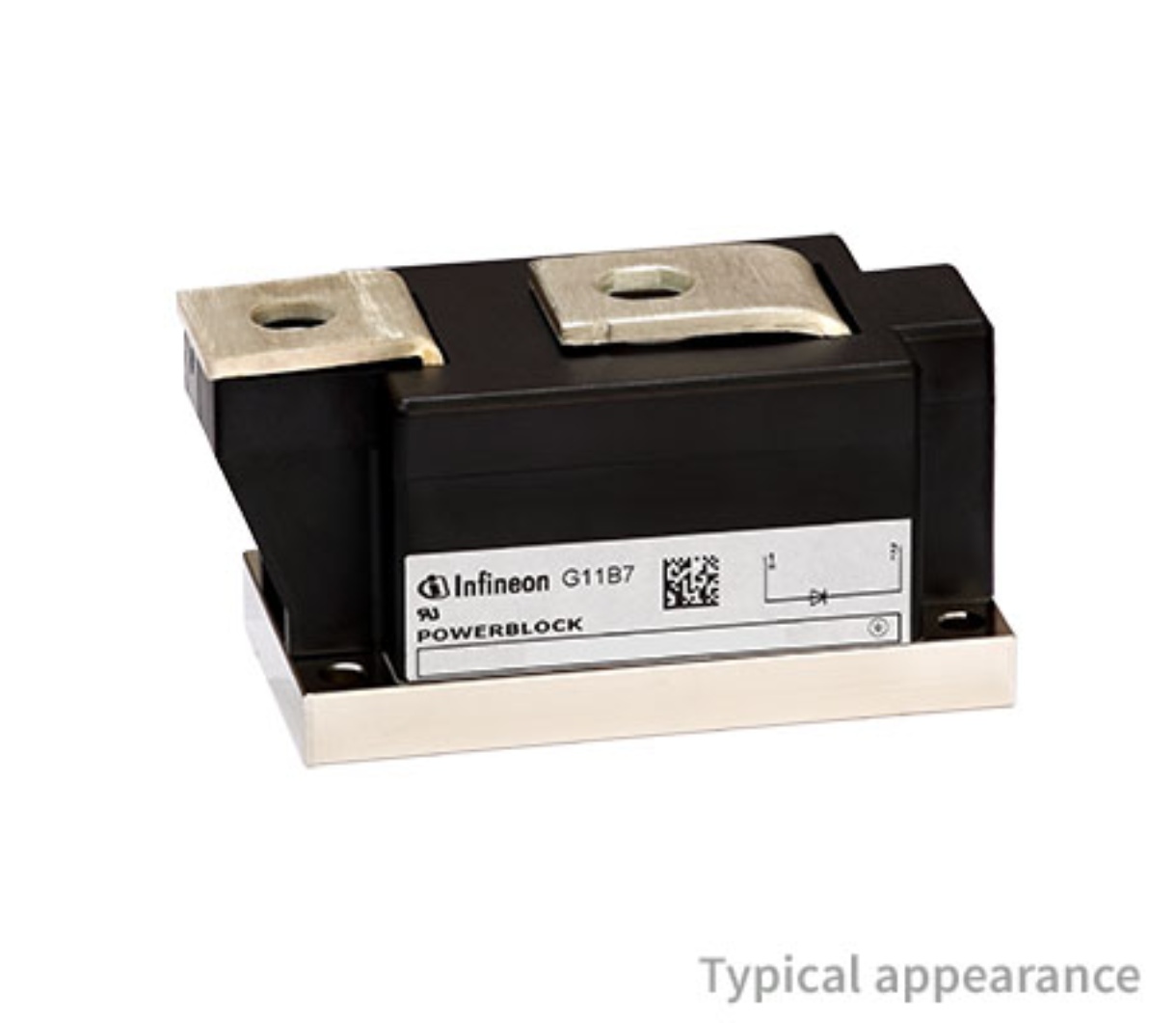

DZ600N14KHPSA1

Teknik Özellikler

Number Of Phases

1

Reverse Voltage

1.4kV

ECCN Kodu

EAR99

Terminal Formu

UNSPECIFIED

Pin Sayısı

600

Diode Element Material

SILICON

RoHS Durumu

Non-RoHS Compliant

Output Current

735A

Current Reverse Leakage Vr

40mA @ 1400V

Max Repetitive Reverse Voltage Vrrm

1.4kV

HTS Kodu

8541.10.00.80

Jesd30 Code

R-XUFM-X2

Voltage Forward Vf Max If

1.4V @ 2200A

Kılıf / Paket

Module

Operating Temperature Max

150°C

Applications

GENERAL PURPOSE

Yüzey Montaj

NO

Voltage Dc Reverse Vr Max

1400V

Speed

Standard Recovery >500ns, > 200mA (Io)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Sayısı

2

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj Tipi

Chassis Mount

Yayın Yılı

2003

Nem Hassasiyeti (MSL)

Not Applicable

Diode Type

Standard

Configuration

SINGLE

Terminal Pozisyonu

UPPER

Halogen Free

Not Halogen Free

Nonrep Pk Forward Currentmax

19000A

Additional Feature

UL RECOGNIZED

Case Connection

ISOLATED

Fabrika Tedarik Süresi

8 Weeks

Operating Temperature Junction

-40°C~150°C

Kurşunsuz

Lead Free

Max Forward Surge Current Ifsm

19kA

Number Of Elements

1

Parça Durumu

Active

Ambalaj

Bulk
