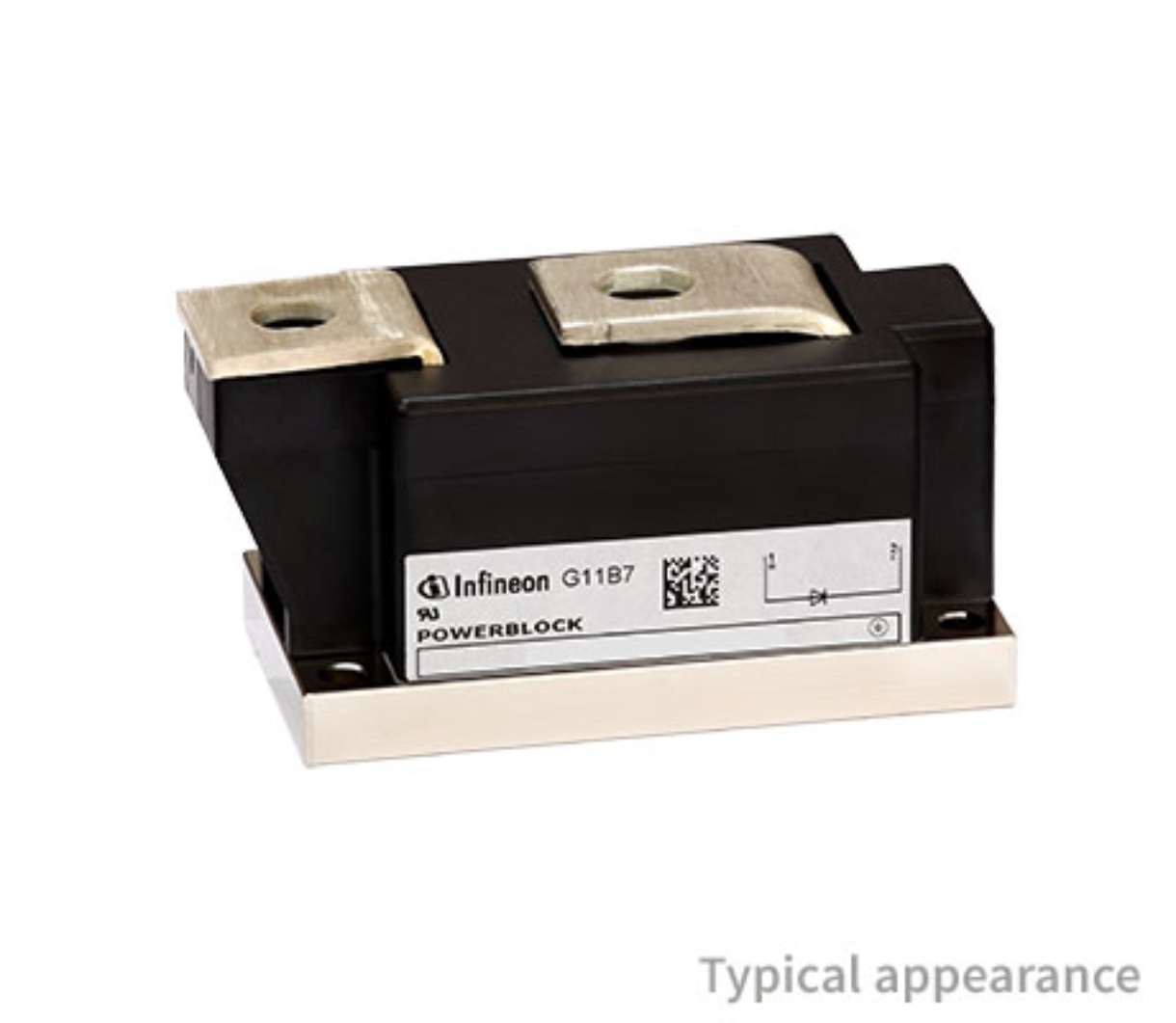

DZ540N26KHPSA1

Teknik Özellikler

Nonrep Pk Forward Currentmax

14000A

Case Connection

ISOLATED

Terminal Pozisyonu

UPPER

Halogen Free

Not Halogen Free

Operating Temperature Junction

-40°C~150°C

Fabrika Tedarik Süresi

8 Weeks

Max Forward Surge Current Ifsm

14kA

Number Of Elements

1

Kurşunsuz

Lead Free

Ambalaj

Bulk

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Sayısı

2

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Diode Type

Standard

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2006

Montaj Tipi

Chassis Mount

Configuration

SINGLE

Jesd30 Code

R-XUFM-X2

HTS Kodu

8541.10.00.80

Kılıf / Paket

Module

Voltage Forward Vf Max If

1.64V @ 2200A

Applications

GENERAL PURPOSE

Operating Temperature Max

150°C

Yüzey Montaj

NO

Speed

Standard Recovery >500ns, > 200mA (Io)

Voltage Dc Reverse Vr Max

2600V

Number Of Phases

1

Reverse Voltage

2.6kV

ECCN Kodu

EAR99

Terminal Formu

UNSPECIFIED

Diode Element Material

SILICON

Pin Sayısı

540

Output Current

732A

RoHS Durumu

RoHS Compliant

Max Repetitive Reverse Voltage Vrrm

2.6kV

Current Reverse Leakage Vr

40mA @ 2600V
