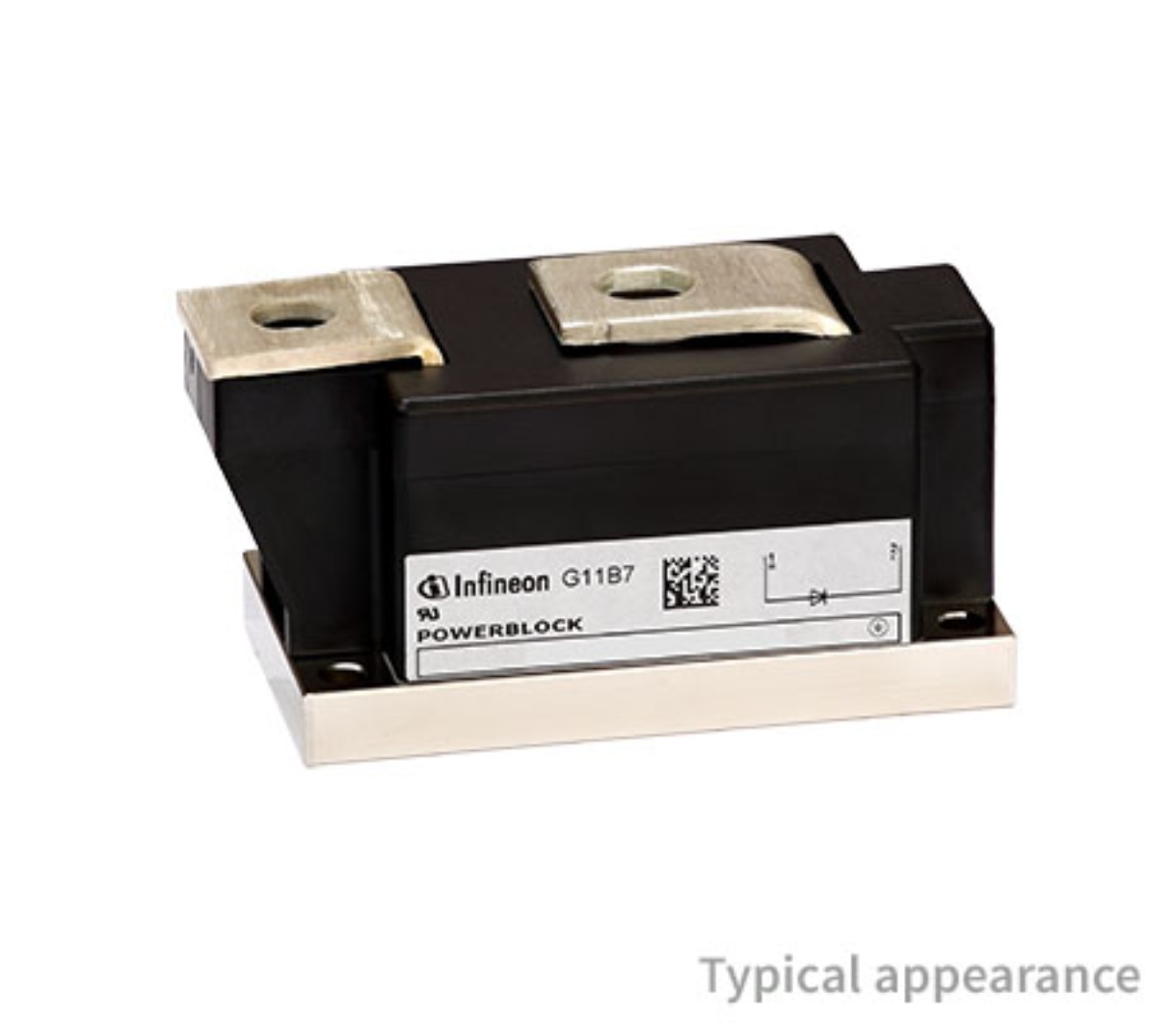

DZ435N40KHPSA1

Teknik Özellikler

Kılıf / Paket

Module

Voltage Forward Vf Max If

1.71V @ 1200A

Jesd30 Code

R-XUFM-X2

HTS Kodu

8541.10.00.80

Speed

Standard Recovery >500ns, > 200mA (Io)

Reverse Currentmax

50000μA

Voltage Dc Reverse Vr Max

4000V

Operating Temperature Max

150°C

Applications

GENERAL PURPOSE

Yüzey Montaj

NO

Diode Element Material

SILICON

ECCN Kodu

EAR99

Number Of Phases

1

Terminal Formu

UNSPECIFIED

Current Reverse Leakage Vr

50mA @ 4000V

RoHS Durumu

RoHS Compliant

Operating Temperature Junction

-40°C~150°C

Fabrika Tedarik Süresi

30 Weeks

Additional Feature

UL RECOGNIZED

Nonrep Pk Forward Currentmax

12000A

Case Connection

ISOLATED

Terminal Pozisyonu

UPPER

Parça Durumu

Active

Ambalaj

Bulk

Rep Pk Reverse Voltagemax

4000V

Number Of Elements

1

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Current Average Rectified Io

700A

Terminal Sayısı

2

REACH Uyumluluk Kodu

compliant

Configuration

SINGLE

Output Currentmax

700A

Diode Type

Standard

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2012

Montaj Tipi

Chassis Mount
