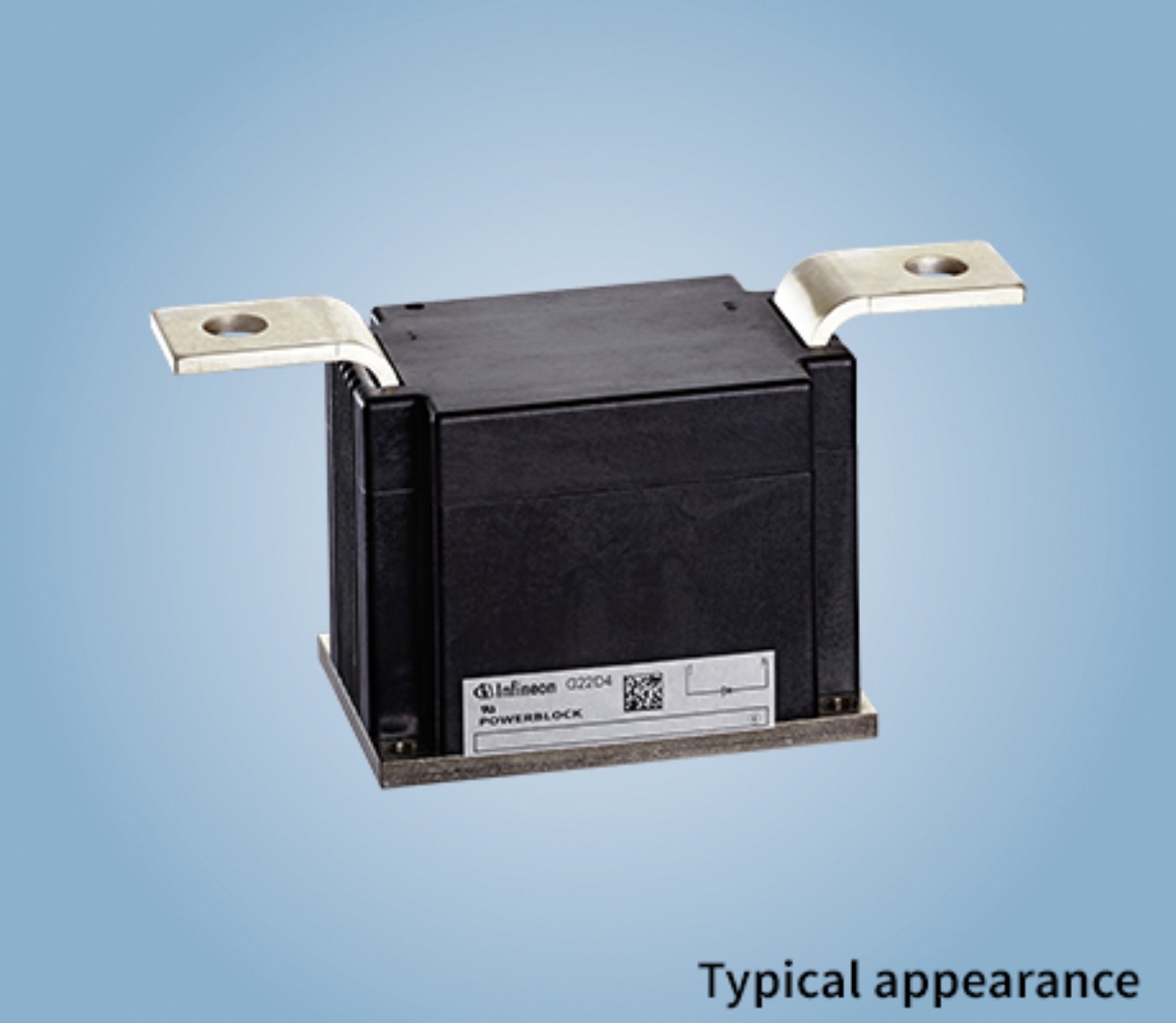

DZ1070N22KHPSA3

Teknik Özellikler

Current Reverse Leakage Vr

150mA @ 2200V

Speed

Standard Recovery >500ns, > 200mA (Io)

Operating Temperature Junction

-40°C~150°C

Configuration

SINGLE

Halogen Free

Not Halogen Free

Reverse Currentmax

150000μA

Nem Hassasiyeti (MSL)

Not Applicable

ECCN Kodu

EAR99

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yayın Yılı

2012

Applications

MEDIUM POWER

Number Of Elements

1

Fabrika Tedarik Süresi

8 Weeks

Diode Type

Standard

Diode Element Material

SILICON

Max Repetitive Reverse Voltage Vrrm

2.2kV

Terminal Pozisyonu

UPPER

Output Current

1.7kA

Current Average Rectified Io

1100A

Number Of Phases

1

Pin Sayısı

107

Yüzey Montaj

NO

Case Connection

ISOLATED

HTS Kodu

8541.10.00.80

Operating Temperature Max

150°C

Nonrep Pk Forward Currentmax

35000A

Jesd30 Code

R-XUFM-X2

Additional Feature

HIGH RELIABILITY, UL RECOGNIZED

Kılıf / Paket

Module

Max Forward Surge Current Ifsm

41kA

Montaj Tipi

Chassis Mount

Ambalaj

Bulk

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Reverse Voltage

2.2kV

Terminal Sayısı

2

Voltage Dc Reverse Vr Max

2200V

Terminal Formu

UNSPECIFIED

RoHS Durumu

RoHS Compliant

Voltage Forward Vf Max If

1.11V @ 3000A

Kurşunsuz

Lead Free
