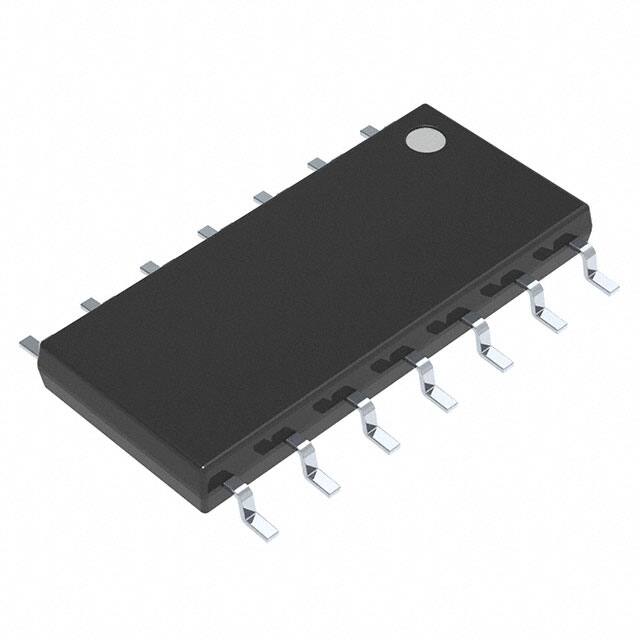

BTT60101ERAXUMA1

Teknik Özellikler

Besleme Gerilimi

28V

Nem Hassasiyeti (MSL)

3 (168 Hours)

Supply Voltagemax Vsup

36V

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Ratio Inputoutput

1:1

Supply Voltagemin Vsup

8V

Çalışma Sıcaklığı

-40°C~150°C TJ

Output Peak Current Limitnom

9A

Terminal Pozisyonu

DUAL

Seri

Automotive, AEC-Q100, PROFET®

Fonksiyon Sayısı

1

Number Of Outputs

1

Parça Durumu

Active

Kılıf / Paket

14-SOIC (0.154, 3.90mm Width) Exposed Pad

Uzunluk

8.65mm

Rds On Typ

10m Ω

Interface

On/Off

Builtin Protections

TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Terminal Sayısı

14

Giriş Tipi

Non-Inverting

Output Configuration

High Side

Voltage Supply Vccvdd

Not Required

Yüzey Montaj

YES

Terminal Formu

GULL WING

Output Current Flow Direction

SINK

Additional Feature

ADDITIONAL EXTENDED OPERATING VOLTAGE 5 TO 48 V

Voltage Load

5V~36V

Fabrika Tedarik Süresi

18 Weeks

Switch Type

General Purpose

Usage Level

Automotive grade

Çıkış Tipi

N-Channel

Genişlik

3.9mm

Fault Protection

Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Montaj Tipi

Surface Mount
