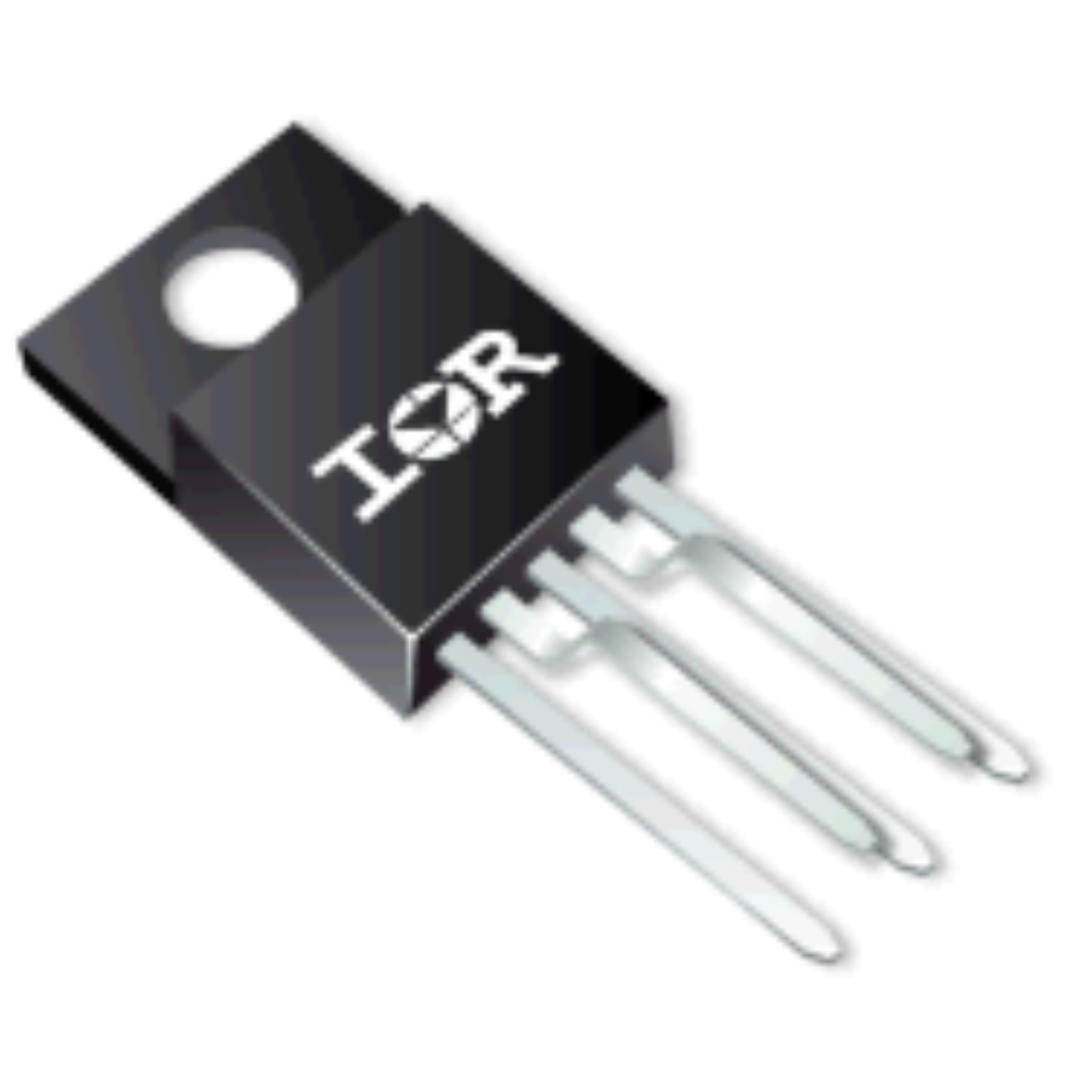

AUIR3316

Teknik Özellikler

Uzunluk

10.668mm

Yayın Yılı

2010

Turn Off Delay Time

350 μs

Direnç

5.5mOhm

RoHS Durumu

RoHS Compliant

Max Input Voltage

26V

Nominal Input Voltage

26V

Reach Svhc

No SVHC

Max Power Dissipation

2W

Min Input Voltage

6V

Output Current

7A

Terminal Sayısı

5

Gerilim

26V

Voltage Load

6V~26V

Temel Parça No

AUIR3316

Montaj Tipi

Through Hole

Power Rating

2W

Turn On Delay Time

300 μs

Akım

23A

Driver Number Of Bits

1

Ambalaj

Tube

Yükseklik

16.51mm

Terminal Pozisyonu

SINGLE

Giriş Tipi

Non-Inverting

Builtin Protections

TRANSIENT; OVER CURRENT

Seri

Automotive, AEC-Q100

Max Output Current

23A

Interface

On/Off

Power Dissipation

2W

Switch Type

General Purpose

Ratio Inputoutput

1:1

Fabrika Tedarik Süresi

19 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Genişlik

4.826mm

Montaj

Through Hole

Voltage Supply Vccvdd

Not Required

Fault Protection

Current Limiting (Adjustable), Over Temperature

Çalışma Sıcaklığı

-40°C~150°C TJ

Output Configuration

High Side

Fall Time Typ

100 μs
