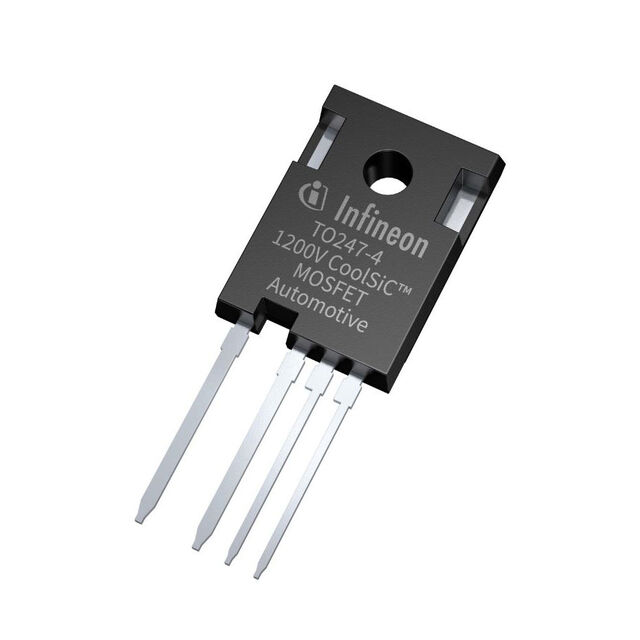

AIMZH120R030M1TXKSA1

Teknik Özellikler

Power Dissipation Max

326W (Tc)

Tedarikçi Cihaz Paketi

PG-TO247-4-11

Qualification

AEC-Q101

Parça Durumu

Active

Rds On Max Id Vgs

38mOhm @ 27A, 20V

Fet Type

N-Channel

Montaj Tipi

Through Hole

Vgs Max

+23V, -5V

Gate Charge Qg Max Vgs

57 nC @ 20 V

Grade

Automotive

Ambalaj

Tube

Vgsth Max Id

5.1V @ 8.6mA

Drain To Source Voltage Vdss

1200 V

Current Continuous Drain Id25

69A (Tc)

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Input Capacitance Ciss Max Vds

1738 pF @ 800 V

Kılıf / Paket

TO-247-4

Drive Voltage Max Rds On Min Rds On

18V, 20V
