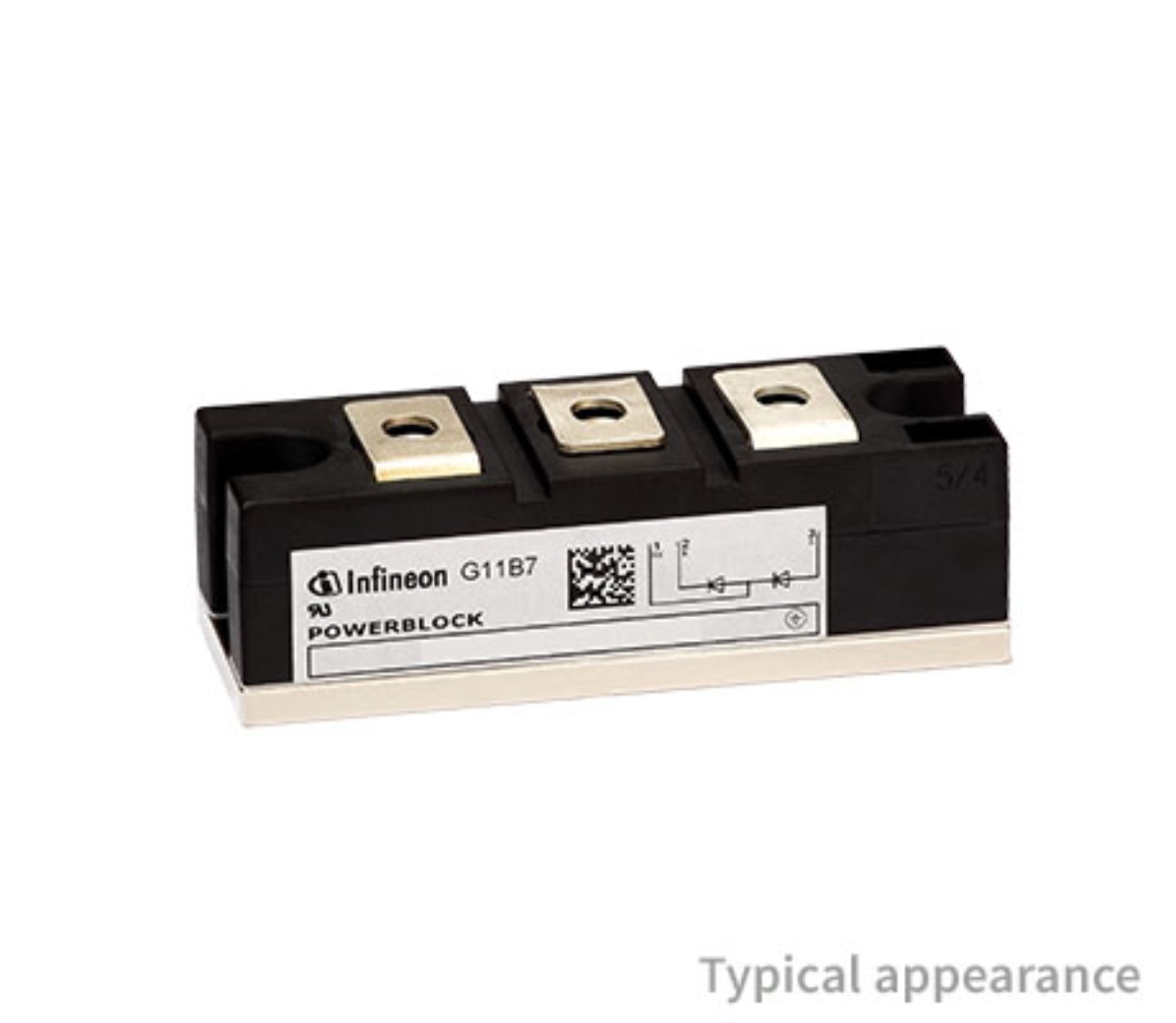

DD160N22K

Teknik Özellikler

ECCN Kodu

EAR99

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Diode Element Material

SILICON

Terminal Formu

UNSPECIFIED

Yüzey Montaj

NO

Configuration

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Operating Temperature Max

150°C

Terminal Sayısı

3

Output Currentmax

172A

Max Forward Surge Current Ifsm

4.6kA

Terminal Pozisyonu

UPPER

Number Of Phases

1

Max Repetitive Reverse Voltage Vrrm

2.2kV

Reverse Currentmax

20000μA

Diode Type

RECTIFIER DIODE

Nonrep Pk Forward Currentmax

4600A

Jesd30 Code

R-XUFM-X3

Applications

GENERAL PURPOSE

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Rep Pk Reverse Voltagemax

2200V

Yayın Yılı

2009

Forward Voltagemax

1.4V

Kurşunsuz

Lead Free

Case Connection

ISOLATED

Kılıf / Paket

Module

RoHS Durumu

Non-RoHS Compliant

Operating Temperature Min

-40°C

Halogen Free

Not Halogen Free

Number Of Elements

2

Additional Feature

UL RECOGNIZED

HTS Kodu

8541.10.00.80

Fabrika Tedarik Süresi

8 Weeks
