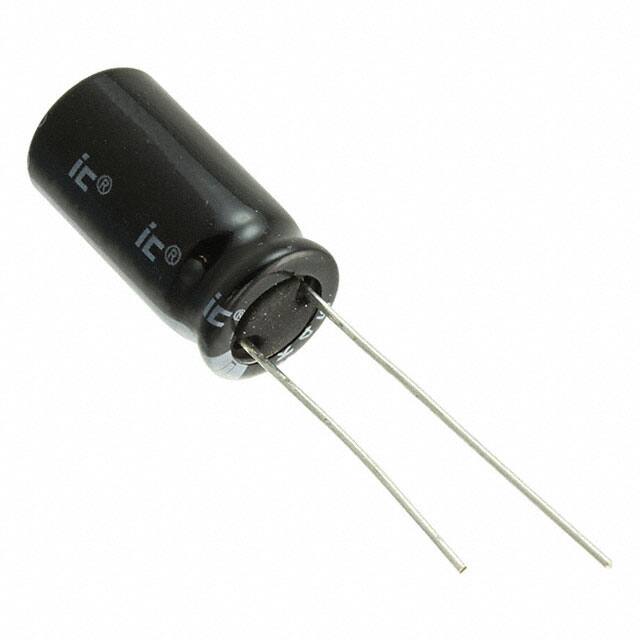

337CKS063M

Teknik Özellikler

Terminal Kaplaması

Matte Tin (Sn)

Voltage Rated Dc

63V

Maks. Oturma Yüksekliği

0.846 21.50mm

RoHS Durumu

ROHS3 Compliant

Ripple Current

825mA

Fabrika Tedarik Süresi

22 Weeks

Çap

500μm

Kurşunsuz

Lead Free

Lead Pitch

5.0038mm

Montaj Tipi

Through Hole

Kılıf / Paket

Radial, Can

Ambalaj

Bulk

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lifetime Temp

2000 Hrs @ 85°C

Terminal Shape

WIRE

Yükseklik

20mm

Yayın Yılı

2012

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Applications

General Purpose

JESD-609 Kodu

e3

Dielectric Material

ALUMINUM (WET)

Polarization

Polar

ECCN Kodu

EAR99

Dissipation Factor

0.1 %

Boyut / Ölçü

0.394Dia 10.00mm

Esr Equivalent Series Resistance

502.4mOhm @ 120Hz

Kapasitans

330μF

Lead Spacing

0.197 5.00mm

Tan Delta

0.1

Parça Durumu

Active

Life Hours

2000 hours

Lead Length

15mm

Ripple Current Low Frequency

825mA @ 120Hz

Tolerans

±20%

Çalışma Sıcaklığı

-40°C~85°C

Ripple Current High Frequency

1.36125A @ 100kHz

Leakage Current

0.6237mA

Montaj

PCB, Through Hole

Seri

CKS
